BSP Parallel Male Stud Non Return Valve with Elastomer Seal B3 Ring
BSP Parallel Male Stud Non Return Valve with Elastomer Seal B3 Ring
SKU:FIT-d4aae3
High-pressure BSP Parallel Male Stud Non Return Valve with durable stainless steel construction. Equipped with B3 Ring for maximum sealing performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
BSP Parallel Male Stud Non Return Valve with Elastomer Seal B3 Ring
$49.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Male Stud Non Return Valve with Elastomer Seal B3 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BSP Parallel Male Stud Non Return Valve is engineered for heavy-duty applications, with a nominal operating pressure of 250 bar. Crafted from durable stainless steel, this valve ensures reliable performance. Featuring a unique design with an Equipped B3 Ring, it offers superior sealing capabilities, making it ideal for hydraulic systems. Compliant with industry standards, this valve delivers efficiency and longevity in demanding environments.

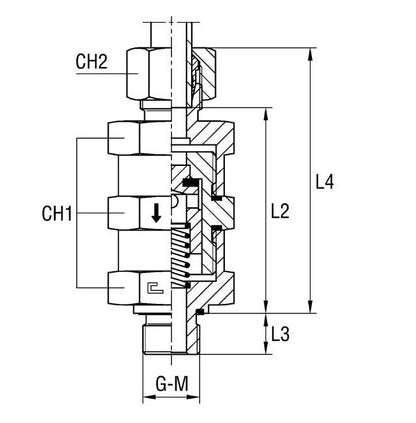

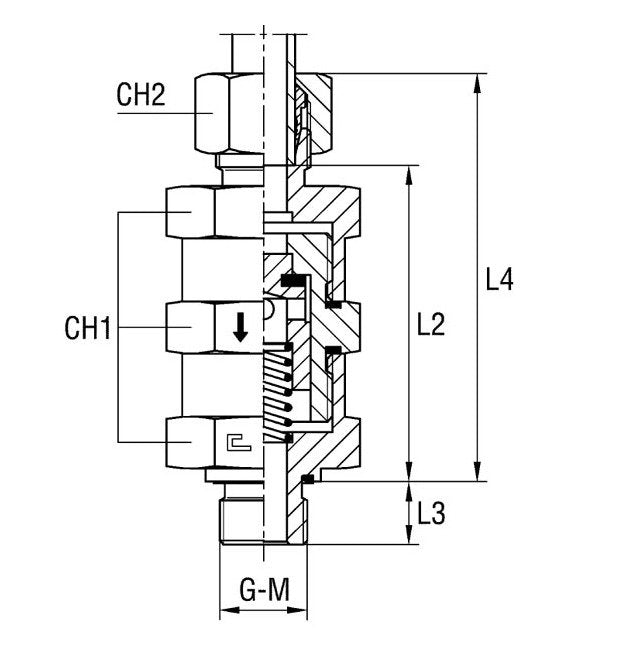

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
46 mm
Specifications Diameter Pass
18 mm
Specifications G Thread Size
1
Specifications L2
75 mm
Specifications L3
18.0 mm
Specifications L4
99 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
25.0 mm
