BSP Parallel Male Stud Non Return Valve with Elastomer Seal - Heavy Duty
BSP Parallel Male Stud Non Return Valve with Elastomer Seal - Heavy Duty
SKU:FIT-7ef84f
High-performance BSP Parallel Male Stud Non Return Valve - Heavy Duty, Carbon Steel, 400 bar
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
BSP Parallel Male Stud Non Return Valve with Elastomer Seal - Heavy Duty
$34.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Male Stud Non Return Valve with Elastomer Seal - Heavy Duty
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

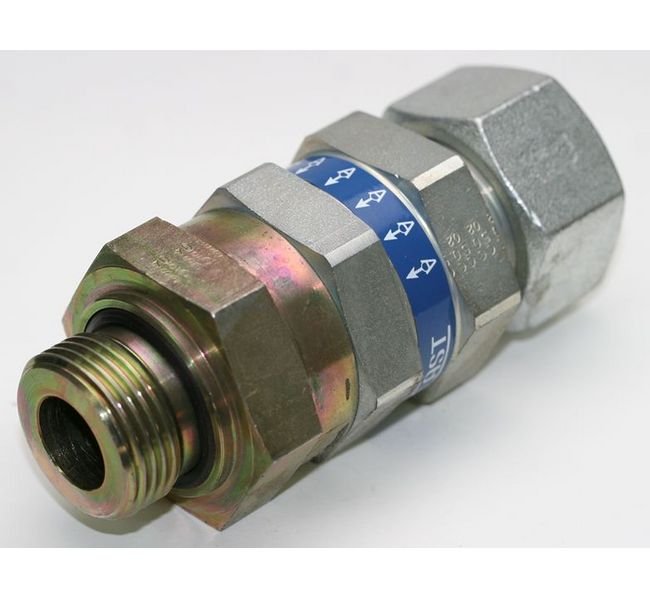

The BSP Parallel Male Stud Non Return Valve with Elastomer Seal is designed for heavy-duty applications, with a nominal operating pressure of 400 bar. Crafted from durable carbon steel, this valve features a 16.0mm tube diameter and a 1/2 inch G-thread size, ensuring reliable performance under high pressure. The valve is equipped with a B4 ring for added sealing efficiency, making it ideal for hydraulic systems in industrial settings. This product meets stringent industry standards for quality and durability, offering long-lasting performance for both consumer and institutional buyers.

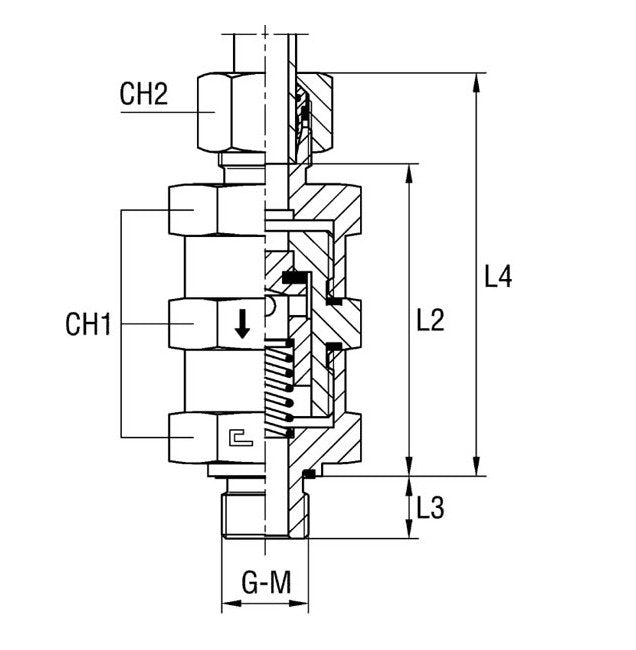

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
30 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L2
65.5 mm
Specifications L3
14.0 mm
Specifications L4
83.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
16.0 mm
