BSPP Flow Control Valve DRV-25 with Check Valve
BSPP Flow Control Valve DRV-25 with Check Valve
SKU:ACC-d11b36
Achieve precise hydraulic fluid control with the BSPP Flow Control Valve DRV-25. DIN 3852 certified for reliability.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
BSPP Flow Control Valve DRV-25 with Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
BSPP Flow Control Valve DRV-25 with Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

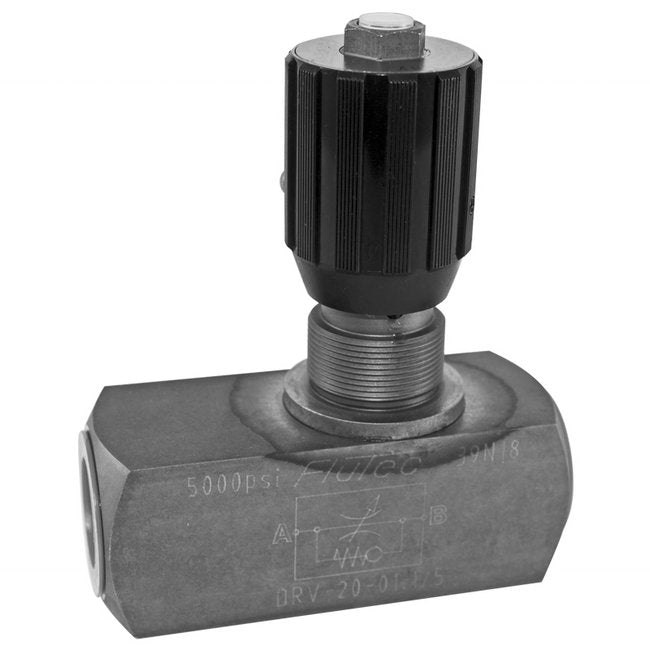

The BSPP Flow Control Valve DRV-25 with Check Valve is designed for precise and repeatable control of hydraulic fluids up to 5000 PSI. This inline valve features a micrometer-style adjustment knob with a color-coded flow indicator for easy visual reference. With housing material of carbon steel and industry standard certifications like DIN 3852, this valve ensures reliable performance and durability in various applications. Its unique safety spindle design, temperature range from -4 to 212°F, and compliance with industry standards make it a trusted choice for both consumer and institutional buyers.
Product Specifications

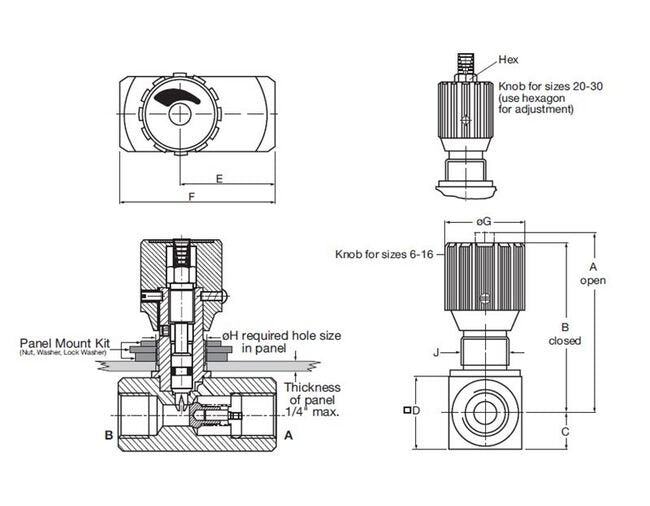

Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.91 in | 150 mm
Dimensions Dimension B
5.24 in | 133 mm
Dimensions Dimension C
1.18 in | 30 mm
Dimensions Dimension D
2.36 in | 60 mm
Dimensions Dimension E
3.66 in | 93 mm
Dimensions Dimension F
5.63 in | 143 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
G 1 1/4
Specifications End Type
BSPP
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
DRV-25-01.X/0
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
25
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
G 1 1/4
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
3.50 kg | 7.72 lb
