BSPP Parallel Male Hex Pipe Plug - ISO Conversion Fitting
BSPP Parallel Male Hex Pipe Plug - ISO Conversion Fitting
SKU:FIT-396fe9
High-quality BSPP Parallel Male Hex Pipe Plug enabling seamless NPT and ISO Thread connections for reliable, pressure-tight joints in various systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
BSPP Parallel Male Hex Pipe Plug - ISO Conversion Fitting
$29.99
Quantity: 1
Claim Your Seller Account
BSPP Parallel Male Hex Pipe Plug - ISO Conversion Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BSPP Parallel Male Hex Pipe Plug by Parker is meticulously designed to facilitate seamless connections between NPT and ISO Thread configurations. Crafted to the highest quality standards, this fitting ensures reliable performance in diverse systems. Utilizing a Parker ISO Conversion Fitting guarantees pressure tight joints with the flexibility to accommodate various sealing requirements. Made from durable materials including steel and brass, it offers exceptional strength and ensures long-term functionality in critical applications.
Product Specifications

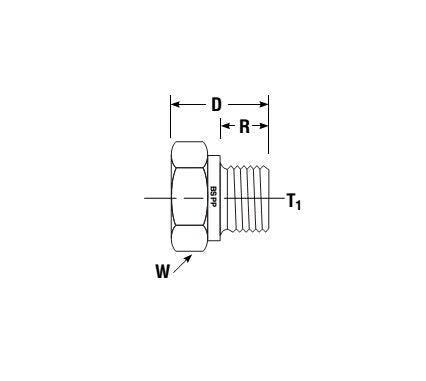

Dimensions Bspp Thread T1
1/8-28
Dimensions Connection Type
BSPP
Dimensions D
.55 in
Dimensions R
.28 in
Dimensions Working Pressure Brass
5000 psi | 340 bar
Dimensions Working Pressure Stainless Steel
9100 psi | 630 bar
Dimensions W Hex
9/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
