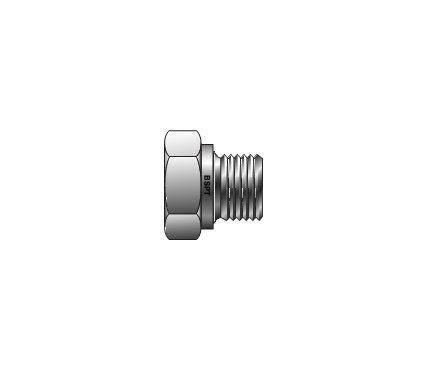

BSPP Parallel Male Hex Pipe Plug - Parker ISO Conversion Fitting
BSPP Parallel Male Hex Pipe Plug - Parker ISO Conversion Fitting
SKU:FIT-f8e2fa
High-quality BSPP Parallel Male Hex Pipe Plug by Parker: Ensures leak-proof joints between NPT and ISO Thread components. Rated up to 4600 psi in stainless steel.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
BSPP Parallel Male Hex Pipe Plug - Parker ISO Conversion Fitting
$29.99
Quantity: 1
Claim Your Seller Account
BSPP Parallel Male Hex Pipe Plug - Parker ISO Conversion Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BSPP Parallel Male Hex Pipe Plug by Parker is a top-quality ISO conversion fitting designed to facilitate connections between components utilizing both NPT and ISO Thread configurations. Manufactured to stringent quality control standards, this fitting ensures reliable performance and leak-proof joints. With a working pressure of up to 4600 psi in stainless steel, and precision engineering, it meets the demands of industrial applications. Note: Use the specified bonded seal for BSPP end connection as indicated for optimal performance.
Product Specifications

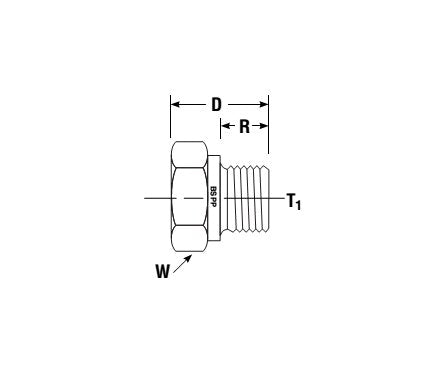

Dimensions Bspp Thread T1
1-11
Dimensions Connection Type
BSPP
Dimensions D
1.21 in
Dimensions R
.72 in
Dimensions Working Pressure Brass
2600 psi | 180 bar
Dimensions Working Pressure Stainless Steel
4600 psi | 320 bar
Dimensions W Hex
1 5/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
