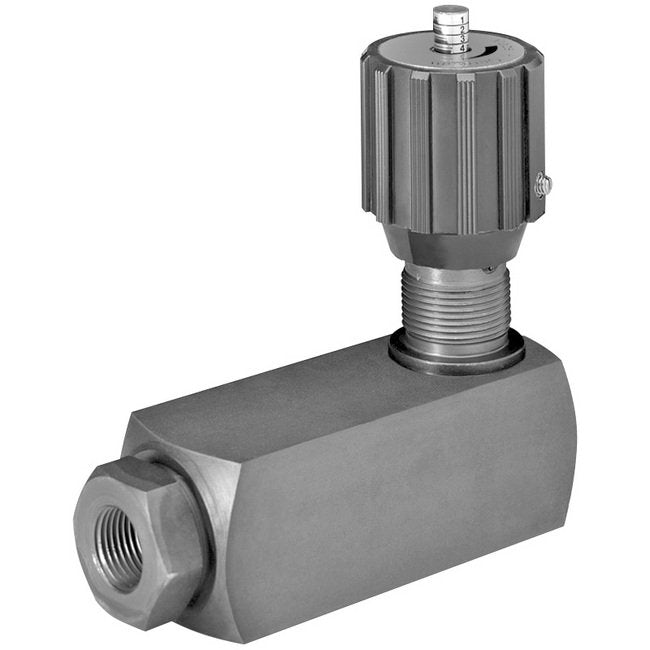

BSPP Pressure Compensated Flow Control Valve with Check - Size 12
BSPP Pressure Compensated Flow Control Valve with Check - Size 12
SKU:ACC-341e3a
Precision meets durability in the SRVR-12 BSPP Flow Control Valve with Certification
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
BSPP Pressure Compensated Flow Control Valve with Check - Size 12
$189.99
Quantity: 1
Claim Your Seller Account
BSPP Pressure Compensated Flow Control Valve with Check - Size 12
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRVR-12 BSPP Pressure Compensated Flow Control Valve with Check is a reliable and precise flow control solution designed for industrial applications. With a DIN 3852 certification, this valve ensures performance and safety standards compliance. Featuring a carbon steel housing, Zinc Plated finish, and a temperature range from -4 to 212 ºF, it is durable and versatile. The unique safety spindle design, color coded spindle for accurate flow control, and provision for panel mounting make it user-friendly and efficient. Ideal for institutions seeking quality and reliability in flow control valves.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0/89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
0.83 in | 21 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
4.17 in | 106 mm
Specifications Dimension F
4.92 in | 125 mm
Specifications Division
ACCESSORIES
Specifications End Size
G 1/2
Specifications End Type
BSPP
Specifications Finish
Zinc Plated
Specifications Hex Size
1.26 in | 32 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
SRVRP-12-01.X
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
G 1/2
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
3.8 kg | 1.7 lb
Specifications Worksheet Tab Name
Hydac
