Bulkhead Elastomer Seal Thread Connection - Carbon Steel

Name: Bulkhead Elastomer Seal Thread Connection - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-2dc90a
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-2dc90a

High-quality Bulkhead Connection ensuring leak-free performance. Ideal for straight male stud coupling configurations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

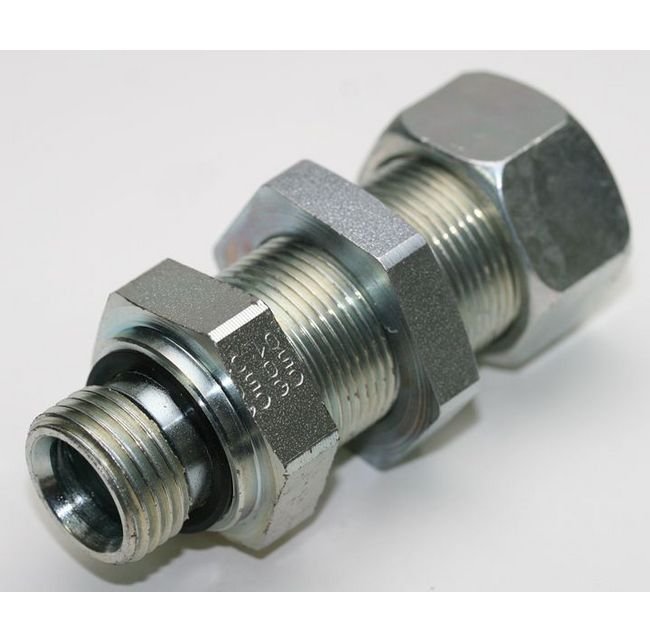

The Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. With precise dimensions including a 15.0 mm tube diameter and compliant with DIN 2353 standards, it offers secure connections and leak-free performance. Ideal for straight male stud coupling configurations, this fitting is engineered to meet stringent industry requirements for reliable performance in various applications.

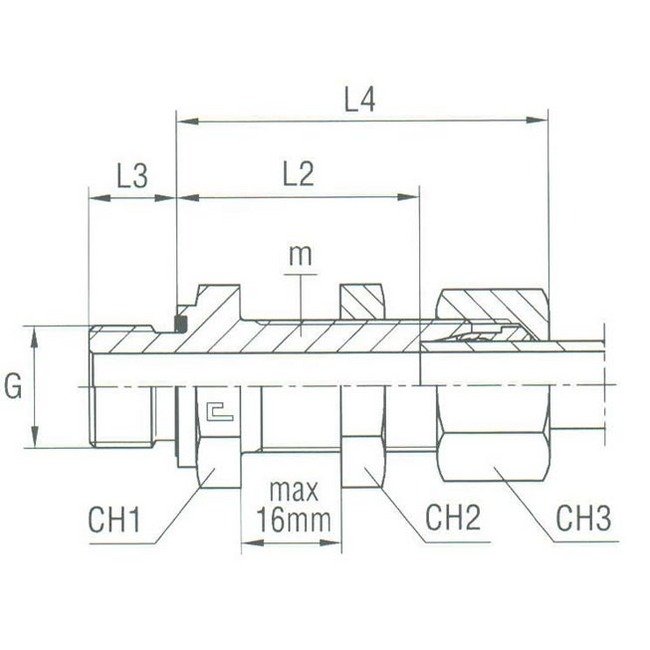

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

30 mm

Specifications Ch3

27 mm

Specifications G Thread Size

1/2

Specifications L2

41.0 mm

Specifications L3

14.0 mm

Specifications L4

56 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

15.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Bulkhead Elastomer Seal Thread Connection - Carbon Steel
