Bulkhead Elbow Equipped B3 Ring - Carbon Steel DIN 2353 Compression Fitting

Name: Bulkhead Elbow Equipped B3 Ring - Carbon Steel DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-9772ad
Price: 25.99 USD
Availability: OutOfStock

SKU:FIT-9772ad

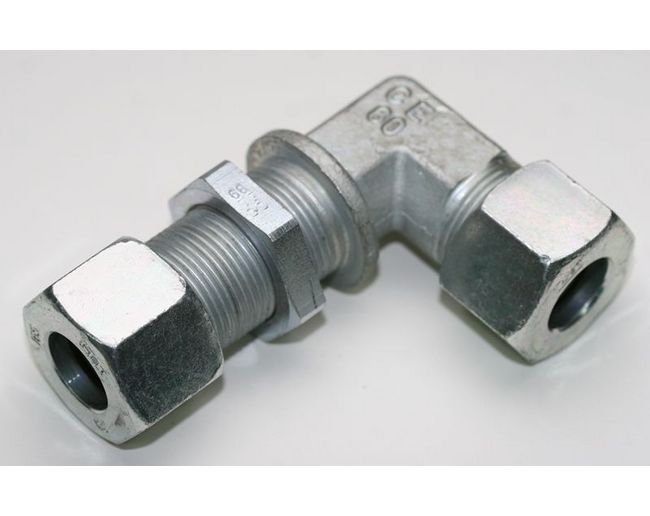

Premium Bulkhead Elbow Equipped B3 Ring - Carbon Steel fitting for 18.0 mm tubes. Pressure: Light Duty. Nominal Operating Pressure: 315 bar. DIN 2353 compliant.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

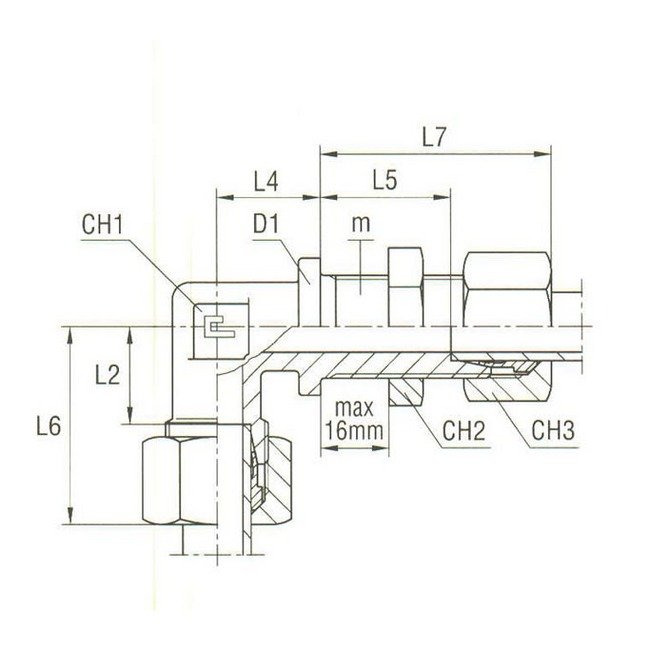

The Bulkhead Elbow Equipped B3 Ring is a reliable light-duty fitting crafted from high-quality carbon steel, suitable for tube diameters of 18.0 mm. With a nominal operating pressure of 315 bar, this fitting ensures secure connections in demanding environments. Meeting DIN 2353 standards, it boasts precise dimensions including L2: 23.5 mm, L4: 24 mm, L5: 32.5 mm, L6: 31 mm, L7: 49 mm. The CH1: 24 mm, CH2: 36 mm, and CH3: 32 mm measurements guarantee a perfect fit for your applications.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

36 mm

Specifications Ch3

32 mm

Specifications D1

32 mm

Specifications L2

23.5 mm

Specifications L4

24 mm

Specifications L5

32.5 mm

Specifications L6

31 mm

Specifications L7

49 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

26x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm
