Bulkhead Elbow with B4 Ring Compression Fitting

Name: Bulkhead Elbow with B4 Ring Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-ae1898
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-ae1898

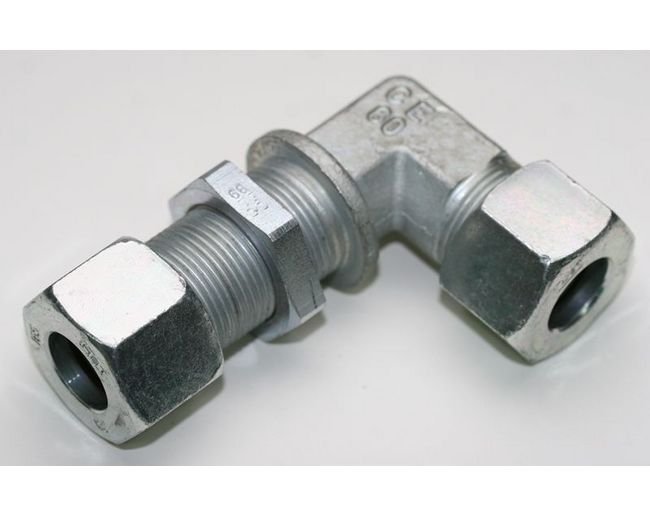

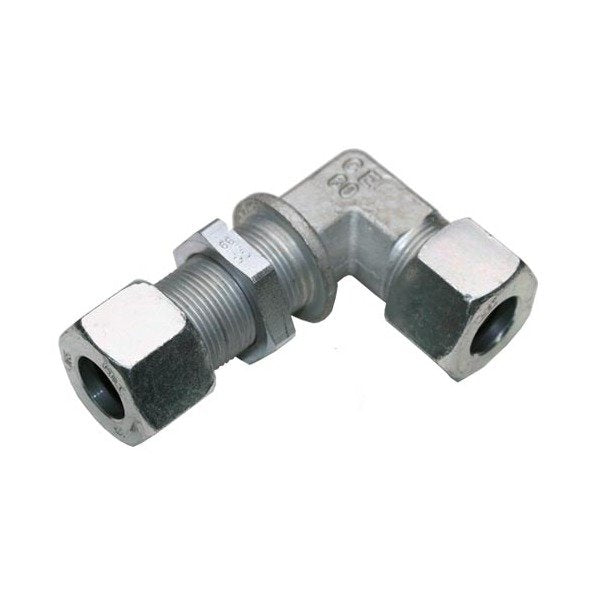

Ensure leak-free connections with this stainless steel Bulkhead Elbow, equipped with B4 Ring for superior performance in high-pressure applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

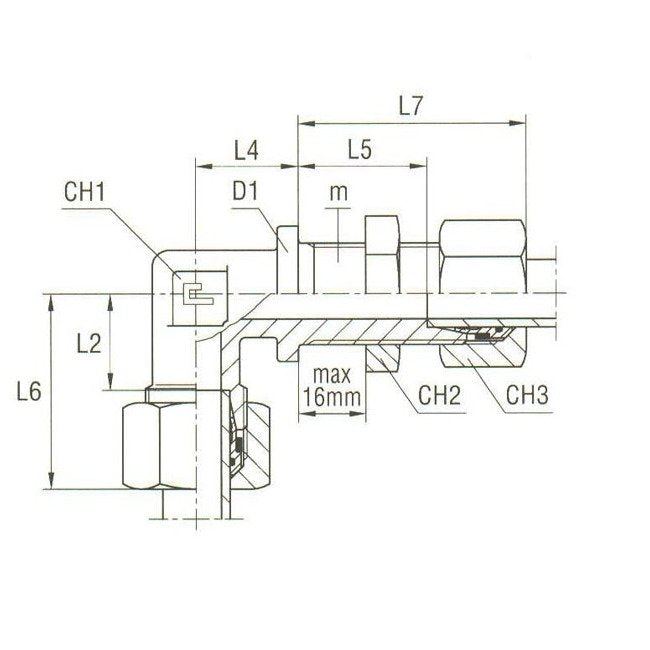

The Bulkhead Elbow with B4 Ring Compression Fitting is engineered for high-performance applications, featuring light-duty stainless steel construction that ensures durability and reliability. With a tube diameter of 10.0mm and a nominal operating pressure of 315 bar, this fitting surpasses industry standards, including DIN 2353. Its compact design, measuring L2: 15mm, L4: 18mm, L5: 28mm, L6: 22mm, L7: 43mm, D1: 22mm, CH1: 14mm, CH2: 22mm, CH3: 19mm, provides secure connections in tight spaces, making it ideal for various fluid system installations.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

22 mm

Specifications Ch3

19 mm

Specifications D1

22 mm

Specifications L2

15 mm

Specifications L4

18 mm

Specifications L5

28 mm

Specifications L6

22 mm

Specifications L7

43 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm
