Bulkhead Male Connector Griplok 1/2" TF x 3/8" MNPT C-276
Bulkhead Male Connector Griplok 1/2" TF x 3/8" MNPT C-276
SKU:FIT-eb156a
Durable Bulkhead Male Connector Griplok for secure and leak-free 1/2" TF x 3/8" MNPT connection in C-276 alloy.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Bulkhead Male Connector Griplok 1/2" TF x 3/8" MNPT C-276
$35.99
Quantity: 1
Claim Your Seller Account
Bulkhead Male Connector Griplok 1/2" TF x 3/8" MNPT C-276
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

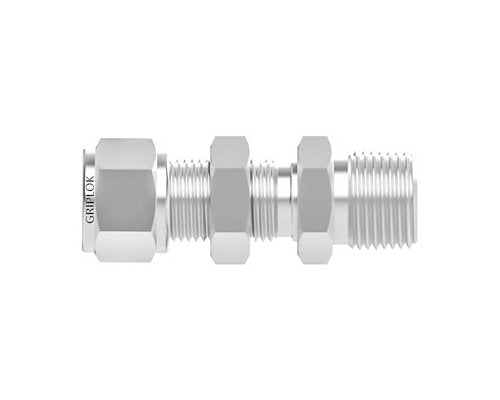

The Bulkhead Male Connector Griplok features Alloy C-276 construction, ensuring exceptional durability. Its 1/2" Tube Fitting x 3/8-18 MNPT configuration offers a secure and leak-free connection. This connector is designed for straightforward installation, with precise dimensions meeting industry standards. Ideal for applications requiring a reliable bulkhead connection.

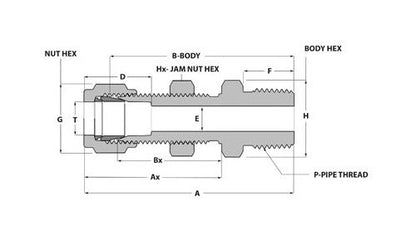

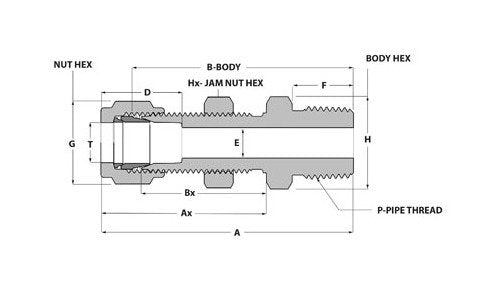

Product Specifications
Dimensions A
2.56 in
Dimensions Ax
1.65 in
Dimensions B
2.09 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.37 in
Dimensions F
0.56 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
