Burndy/Souriau Type Vacuum Side Metal Shell Connector Insert with Socket Pins
Burndy/Souriau Type Vacuum Side Metal Shell Connector Insert with Socket Pins
SKU:HER-34d477
Durable hermetic connector for vacuum side applications with aluminum or SUS304 shell and PEEK, PTFE, or Alumina insert options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Burndy/Souriau Type Vacuum Side Metal Shell Connector Insert with Socket Pins
$49.99
Quantity: 1
Claim Your Seller Account
Burndy/Souriau Type Vacuum Side Metal Shell Connector Insert with Socket Pins
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

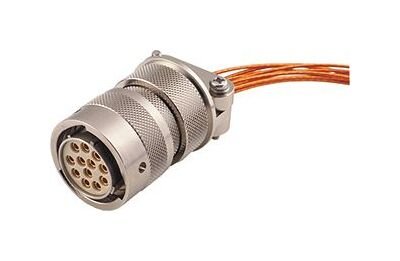

The Burndy/Souriau Type Vacuum Side Metal Shell Connector Insert with Socket Pins offers exceptional durability and performance for vacuum side applications. This hermetic connector features a choice of aluminum or SUS304 shell materials and PEEK, PTFE, or Alumina insert options. With options ranging from 4 to 48 poles, this connector ensures reliable connections in challenging environments. Ideal for industries requiring high-quality vacuum components, this product excels in delivering optimal performance and longevity.
Product Specifications
Reasons Why Our Vacuum Connectors Are Chosen
The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.
Specifications Acceptable Plug Diameter
0.063 in | 1.6 mm
Specifications Materials
Alumina | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE)
Specifications Number Of Pins
4 | 8 | 12 | 19 | 22 | 30 | 48
Specifications Operating Temperature
-55 to 150 ºC
Specifications Type
BU
