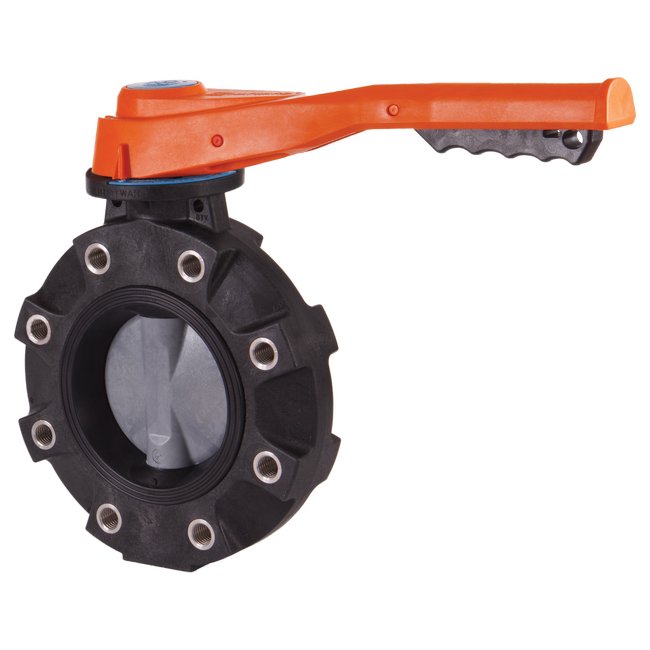

BYV Series Butterfly Lugged Valves - CPVC/316SS - 6"
BYV Series Butterfly Lugged Valves - CPVC/316SS - 6"
SKU:BUT-bf36be
Advanced BYV Series Butterfly Valves with CPVC Body, 316SS Stem, and Revolutionary Hand Lever for precise flow control.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
BYV Series Butterfly Lugged Valves - CPVC/316SS - 6"
$289.99
Quantity: 1
Claim Your Seller Account
BYV Series Butterfly Lugged Valves - CPVC/316SS - 6"
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BYV Series Butterfly Lugged Valves offer unparalleled performance for critical applications. With a one-piece body and disc in CPVC and a 316 stainless steel stem, these valves ensure durability and reliability. Featuring a revolutionary hand lever design with 19 lockable stop positions, external disc position indication, and hydro-dynamic centric disc design, these valves guarantee precise flow control. Their compliance with ANSI B16.10 standards and ability to meet various industrial requirements make them a top choice for water treatment, chemical processing, and marine environments.
Product Specifications
Key Features Benefits And Advantages 0
One Piece Body and Disc in PVC, CPVC and GFPP MaterialsRevolutionary Hand Lever with 19 Lockable Stop Positions and 360° InterlockExternal Disc Position and Flow IndicationHydro-dynamic Centric Disc Design for Increased Flow PerformanceOver-Sized Liner Face Maximizes Surface Contact with FlangesEPDM, Viton® or Nitrile Liners1-Piece 316 Stainless Steel Stem with Threaded Retaining GlandStem Bearing and Seal Retainer for Absolute Stem Positioning and SealingISO 5211 Top Flange and Stem DriveAll Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
Materials 0
PVC per ASTM D1784 Cell Class 12454CPVC per ASTM D1784 Cell Class 23447GFPP per ASTM D4101 Cell Class 85580EPDM, Viton® and Nitrile Liners
Options 0
Over-Molded or Field Mountable 316 Stainless Steel LugsGear OperatorsComplete Range of Pneumatic or Electric ActuatorsStem Extensions2" Square Operating NutChain Operator for Gear Box
Sample Specification 0
All thermoplastic wafer-style butterfly valves shall be manufactured from PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454), CPVC(ASTM D1784, Cell Classification 23447) or glass filled Polypropylene (ASTM D4101, Cell Classification 85580). All valve bodies shall containintegral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Bodies shall contain fully-supported flange bolt holes,be one piece construction and meet ANSI B16.10 narrow face-to-face dimensions in all sizes. If LUGGED butterfly valves are required, lugsshall be over-molded, 316 stainless steel and be the full width of the body. Liners shall be EPDM, Viton® or Nitrile. Liner shall be FULL BOOTdesign, and shall be retained in the body via rib and groove engagement. Liner shall serve as primary disc seal and face seals for mating flanges.Secondary upper bearing and lower seal retainer o-ring seals to be EPDM or FPM. Stem shall be 316 stainless steel, non-wetted and providefull engagement over length of disc. Stem shall have position retention design.Lever handle shall be trigger-style with 360° interlocking splines allowing the handle to position the disc in 5° increments. Mounting of stopplate for lever handle shall be non-invasive to the valve body and shall not incorporate self tapping screws or other fasteners that connectdirectly to the valve body. Trigger shall contain hole for padlock, as well as slot for cable tie, to lockout valve. Lever handle material to be 30%glass filled Polypropylene with UV Inhibitor.All sizes of butterfly valves (2" through 12") shall be pressure-rated for 150 PSI at 70°F non-shock.All butterfly valves shall carry a three-year warranty, and shall be manufactured by Hayward Flow Control products in the USA.
Specifications Body Material
CPVC
Specifications Disc Material
CPVC
Specifications Flow Coefficient Cv
1300
Specifications Liner Material
Nitrile
Specifications Medium Temperature Range
70 ºF | 21 ºC
Specifications Method Of Operation
Lever
Specifications Pressure Rating At 70f
150 psi | 10 bar
Specifications Seal Material
Nitrile
Specifications Stem Material
316SS
Specifications Valve Size
6 in
Specifications Weight
12.7 lb | 5.8 kg
Applications 0
Water and Wastewater TreatmentAquatic and Animal Life Support SystemsChemical Processing and HandlingMarine and Corrosive EnvironmentsMiningMetal Plating and Surface FinishingLandfills / Environmental InfrastructureWater / Theme Parks
