C-276 3-Way Ball Valve - Female BSPT, 1/4"
C-276 3-Way Ball Valve - Female BSPT, 1/4"
SKU:VAL-fb8099
Premium C-276 Encapsulated 3-way Ball Valve for efficient flow control. Alloy C-276, Cv: 0.75, -65 to 300°F.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
C-276 3-Way Ball Valve - Female BSPT, 1/4"
$129.99
Quantity: 1
Claim Your Seller Account
C-276 3-Way Ball Valve - Female BSPT, 1/4"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with our C-276 Encapsulated 3-way Ball Valve. Featuring Alloy C-276 construction, Modified PTFE packing, and a Cv of 0.75, this valve ensures durable and efficient flow control. With a temperature range of -65 to 300°F, precise dimensions, and an orange Nylon handle with Stainless Steel insert, this valve is ideal for demanding industrial applications. Compliant with Federal/DoD procurement standards, this valve guarantees reliability and longevity in use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

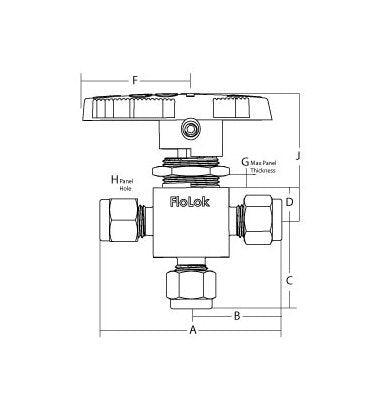

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Orange
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
