C-276 Encapsulated 2-Way Ball Valve, EB Series

C-276 Encapsulated 2-Way Ball Valve, EB Series

VAL-f1166c

High-performance C-276 Encapsulated 2-Way Ball Valve for industrial applications. Alloy C-276, FNPT connections, Cv 1.2, -65 to 300 °F, 3000 psig.

$129.99
$129.99
Sale

Initiate Order

C-276 Encapsulated 2-Way Ball Valve, EB Series

C-276 Encapsulated 2-Way Ball Valve, EB Series

$129.99

Quantity: 1

Claim Your Seller Account

C-276 Encapsulated 2-Way Ball Valve, EB Series

C-276 Encapsulated 2-Way Ball Valve, EB Series

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

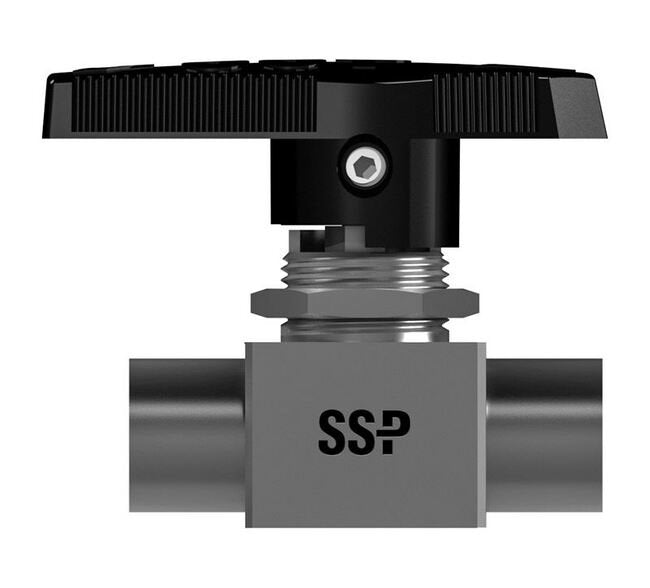

Enhance your industrial fluid control system with the EB Series C-276 Encapsulated 2-Way Ball Valve. This valve features Alloy C-276 construction, FNPT connections, a Cv of 1.2, and a temperature range of -65 to 300 °F. With a working pressure of 3000 psig and Modified PTFE packing, this valve ensures reliable performance in demanding environments. The yellow Nylon handle with stainless steel insert provides durability and easy operation, meeting the highest standards of quality and precision.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

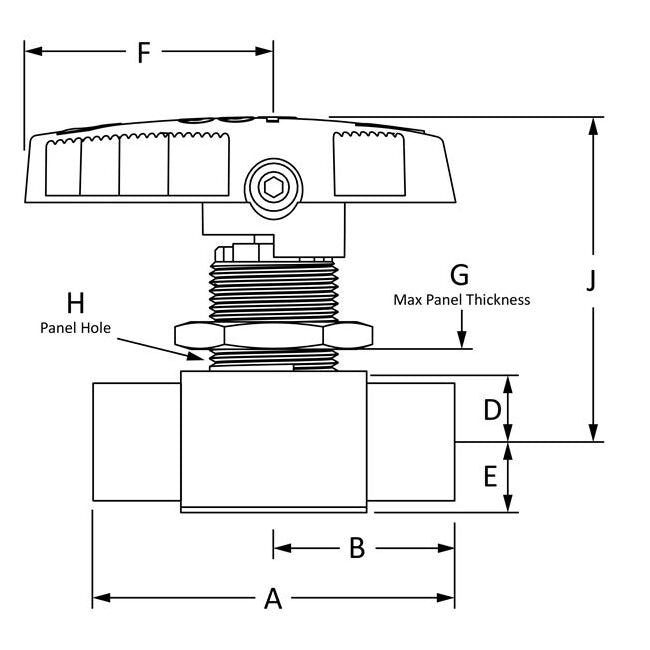

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

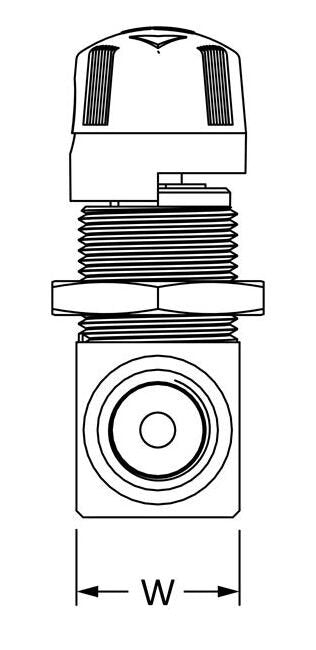

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/8-27
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/8-27
Specifications Connection 2 Type
FNPT
Specifications Cv
1.2
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
