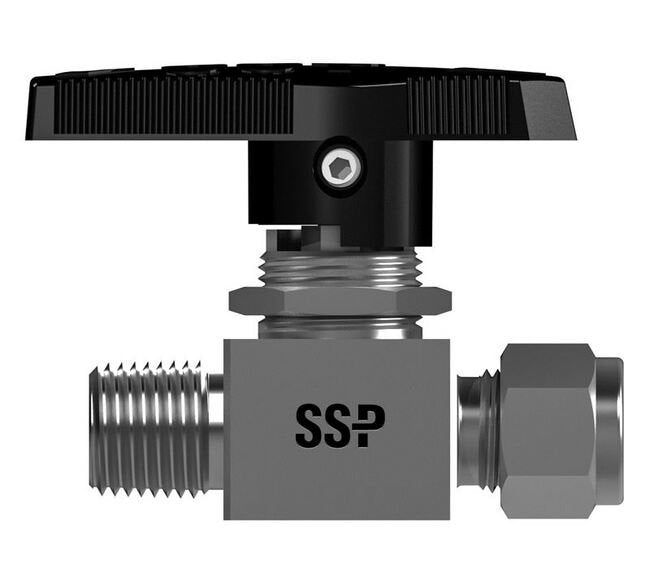

C-276 Encapsulated 2-Way Ball Valve with Duolok Tube Fitting
C-276 Encapsulated 2-Way Ball Valve with Duolok Tube Fitting
SKU:VAL-ed29ee
Enhance fluid control with our high-performance EB Series C-276 2-way Ball Valve. Alloy C-276 construction, 0.75 Cv, 0.187" orifice, and Red Nylon handle for precision and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C-276 Encapsulated 2-Way Ball Valve with Duolok Tube Fitting
$49.99
Quantity: 1
Claim Your Seller Account
C-276 Encapsulated 2-Way Ball Valve with Duolok Tube Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with our EB Series C-276 Encapsulated 2-way Ball Valve featuring Alloy C-276 construction, suitable for high-pressure applications up to 3000 psig. With a Cv of 0.75 and a precise orifice size of 0.187 inches, this valve ensures efficient flow control. The handle, crafted from Red Nylon with a Stainless Steel Insert, provides durability and ease of operation. Its Modified PTFE packing material offers reliable sealing even in extreme temperatures ranging from -65 to 300°F.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

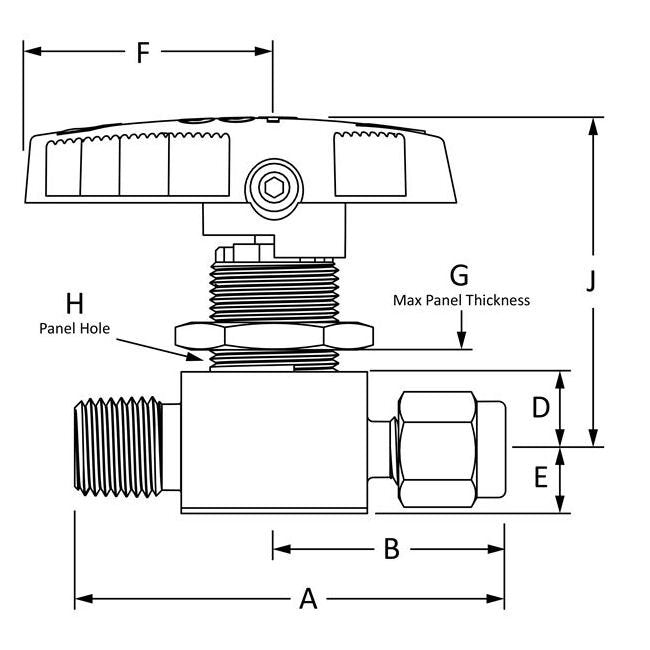

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Duolok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Red
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
