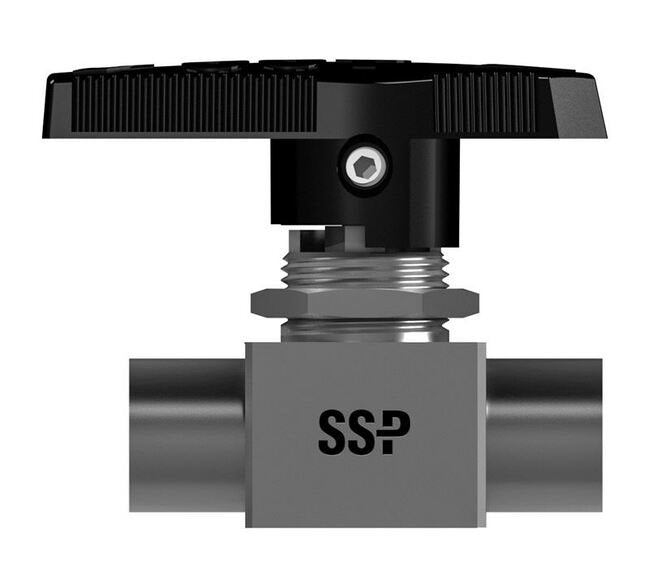

Upgrade your fluid control system with our C-276 Encapsulated 2-way Ball Valves from the EB Series. These valves feature Alloy C-276 bodies, FNPT connections, and Modified PTFE packing for superior durability and leak prevention. With a Cv of 0.50 and a working pressure of 2500 psig, these valves ensure reliable performance in temperatures ranging from -65 to 300°F. The blue Nylon handle with a Stainless Steel insert offers ease of operation, while the locking hardware provides added security. Meet demanding industrial needs with precision and efficiency using our premium ball valves.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

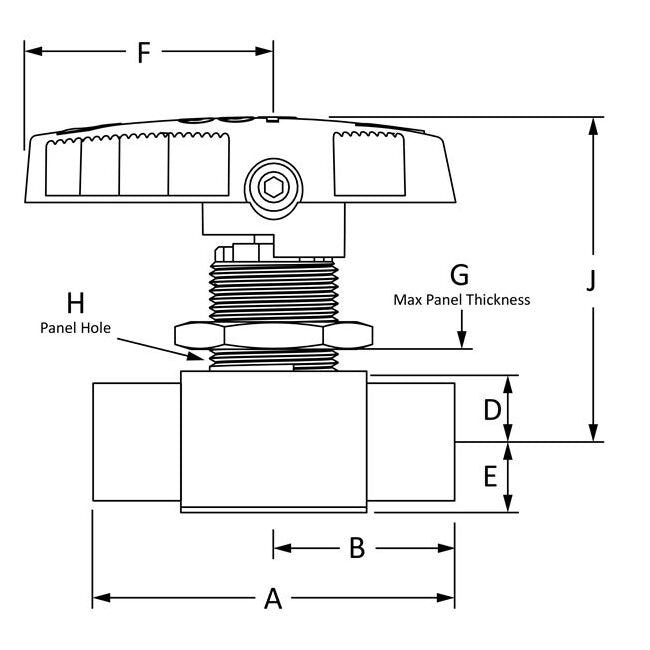

Dimensions A
1.63 in | 41.4 mm
Dimensions B
0.81 in | 20.6 mm
Dimensions D
0.34 in | 8.6 mm
Dimensions E
0.28 in | 7.1 mm
Dimensions F
1.09 in | 27.6 mm
Dimensions G
1/4 in | 6.4 mm
Dimensions H
19/32 in | 15.1 mm
Dimensions J
1.45 in | 36.8 mm

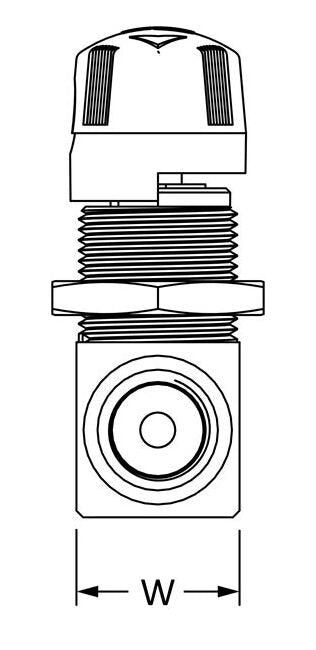

Dimensions W
0.58 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/8-27
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/8-27
Specifications Connection 2 Type
FNPT
Specifications Cv
0.50
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.125 in | 3.175 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
2500 psig | 172 bar
