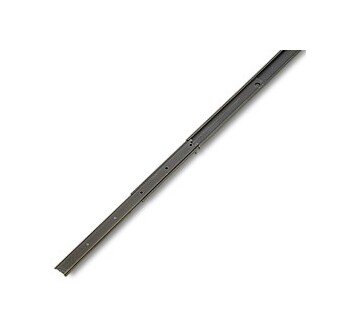

C-300-S Non Pivoting Slide
C-300-S Non Pivoting Slide
SKU:CHA-ff41d2
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C-300-S Non Pivoting Slide
$49.99
Quantity: 1
Claim Your Seller Account
C-300-S Non Pivoting Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0

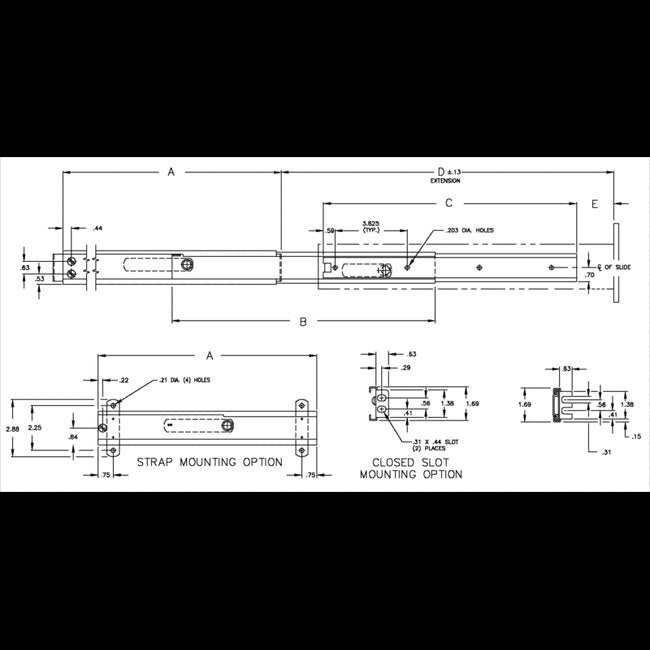

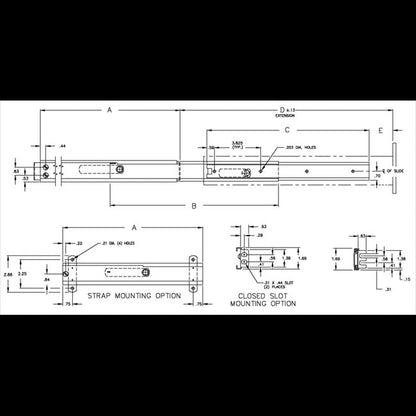

Right hand slide shown, left hand opposite.Finish: All standard slides are coated with Poxylube® dry film lubricant.All standard slides are designed to lock in the extended position.Automatic release is available if lock-out is not desirable.Standard hardware packages include all hardware necessary to mount your Chassis Trak® slides:Rear mounting brackets (B-217)Bar nuts (CA8056-06-0017)#10;-32 x 0.50 F.H.M.S. (flush front rail mounting)#10;-32 x 0.38 B.H.M.S.#10;-32KEPS® nutsAll sliding members of this standard slide are made from cold rolled steel. This slide model is also available in stainless steel.All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be easily removed and replaced.Optional mounting patterns, slide lengths and extensions are available.
Specifications Forward Extension D Max
25.00 in
Specifications Forward Extension D Min
21.00 in
Specifications Gdi Reference
CC3001-00-0240
Specifications Installation Sheet
Installation Sheet
Specifications Intermediate Length B
19.25 in
Specifications Material
Cold Rolled Steel
Specifications Optional Mounting Bracket
B-217|B-217-1.5|B-217-2|B-217-2.5|B-217-3|B-217-3.5|B-217-4|B-308|B-793
Specifications Slide Length A
24.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Stationary Section
Cabinet Mount
Specifications Weight Capacity
85 lbs
Specifications Weight Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
