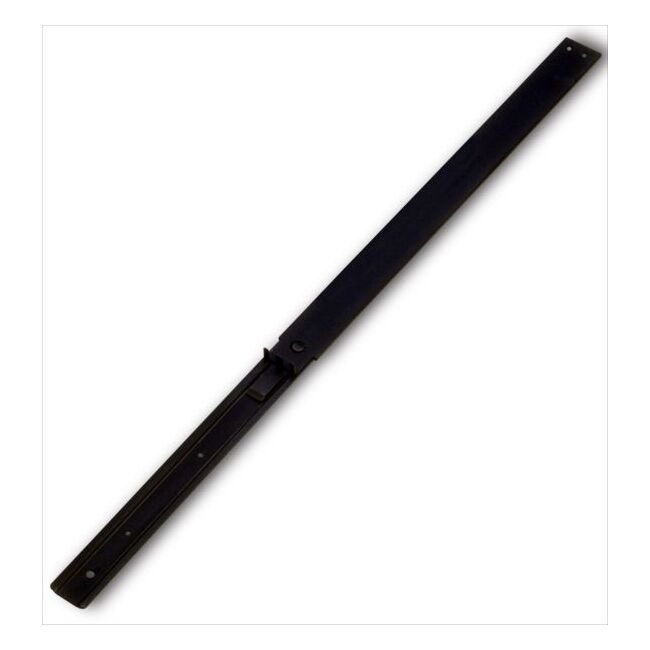

C-3700 Ultra-Thin Solid Bearing Slide
C-3700 Ultra-Thin Solid Bearing Slide
SKU:CHA-7520b4
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C-3700 Ultra-Thin Solid Bearing Slide
$49.99
Quantity: 1
Claim Your Seller Account
C-3700 Ultra-Thin Solid Bearing Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0
Right hand and left hand slide are same.Finish: All Standard Slides are coated with Poxylube® dry film lubricant.All standard slides are designed to lock in the extended position.Automatic release is available if lock-out is not desirable.Standard hardware packages include all hardware necessary to mount Chassis Trak® slides:C-3700 Rear mounting brackets (B-217)Bar nuts (CA8056-06-0017)#6;-32 x 0.38 B.H.M.S.#6;-32 KEPS® nuts#10;-32 x 0.50 F.H.M.S.#10;-32 x 0.38 B.H.M.S.#10;-32 KEPS® nutsC-3700-RCRear mounting brackets (B-161)Bar nuts (CA8056-06-0014)#6;-32 x 0.38 B.H.M.S.#6;-32 KEPS® nuts#10;-32 x 0.50 F.H.M.S.#10;-32 x 0.38 B.H.M.S.#10;-32 KEPS® nutsAll sliding members of this slide are made from cold rolled steel.All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be removed easily and replaced.Optional mounting patterns, slide lengths and extensions are available.

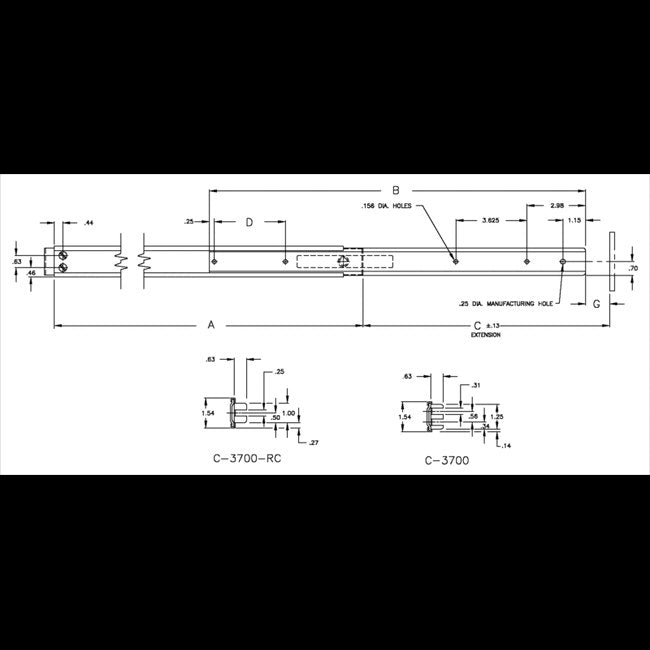

Specifications Chassis Length B
26.13 in
Specifications Forward Extension C Max
18.45 in
Specifications Forward Extension C Min
17.22 in
Specifications Gdi Reference
CC3701-00-0280
Specifications Installation Sheet
Installation Sheet
Specifications Optional Mounting Bracket
B-217|B-217-1.5|B-217-2|B-217-2.5|B-217-3|B-217-3.5|B-217-4|B-161|B-161-1.5|B-161-2|B-161-2.5|B-161-3|B-161-3.5|B-161-4
Specifications Slide Length A
28.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Weight Capacity
65 lbs
Specifications Weight Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
