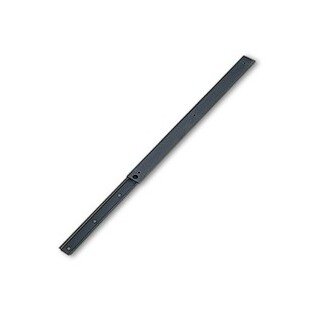

C-649 Two-Section Spacesaving Slide
C-649 Two-Section Spacesaving Slide
SKU:CHA-4c6f0f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C-649 Two-Section Spacesaving Slide
$49.99
Quantity: 1
Claim Your Seller Account
C-649 Two-Section Spacesaving Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0
Right hand and left hand slide are same.Finish: All standard slides are coated with Poxylube® dry film lubricant.All standard slides are designed to lock in the extended position.Automatic release is available if lock-out is not desirable.Standard hardware packages include all hardware necessary to mount Chassis Trak® slides:#8;-32 KEPS nuts #8;-32 x 0.44 F.H.M.S.#10;-32 x 0.38 B.H.M.S. #10;-32 KEPS® nutsAll sliding members of the standard slide are made from cold rolled steel. This model is also available in stainless steel.All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be removed easily and replaced.Optional mounting patterns, slide lengths and extensions are available.

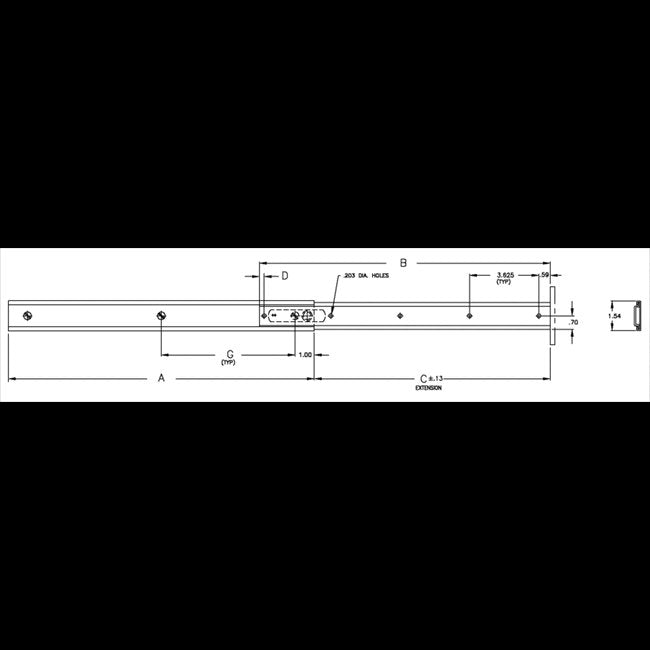

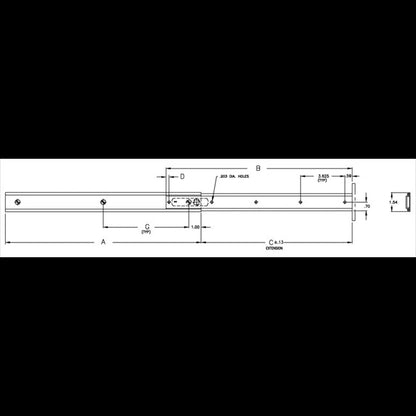

Specifications Chassis Length B
17.25 in
Specifications Gdi Reference
CC3202-00-0180
Specifications Material
Cold Rolled Steel
Specifications Slide Length A
18.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Weight Capacity
90 lbs
Specifications Weight Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
