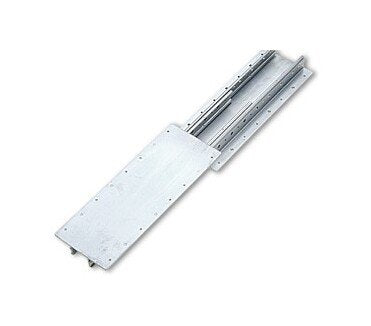

C-7000 Linear Bearing Bottom Mount Slide
C-7000 Linear Bearing Bottom Mount Slide
SKU:CHA-31b4ca
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C-7000 Linear Bearing Bottom Mount Slide
$49.99
Quantity: 1
Claim Your Seller Account
C-7000 Linear Bearing Bottom Mount Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0

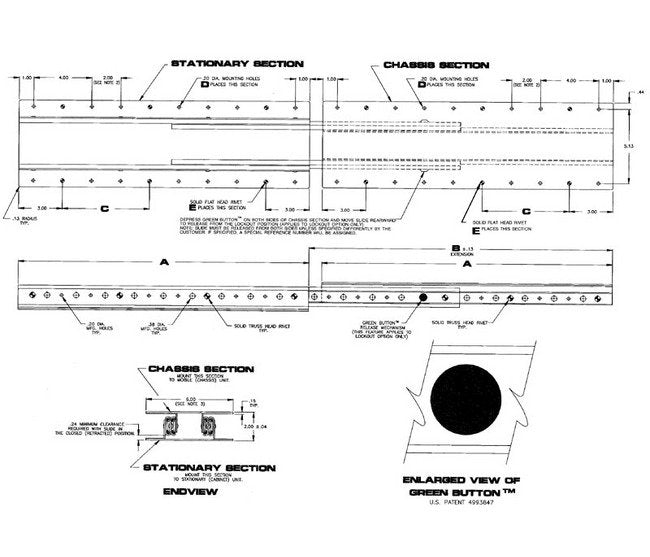

C-7000 slides have positive stops but do not lock at any position. Optional lock-out feature is readily available.Slide finish is clear zinc commercial plating.Ball bearing rollers are lubricated with -45ºF to 350ºF temperature range grease.Load capacity is based on one slide at full extension, with load (center of gravity) at midpoint of the slide (chassis section). This capacity has a 100% static (non-moving) load safety factor at full extension, but is not intended to be operated with loads exceeding specified load capacity. For increased load capacity, multiply number of slides required for the application.Slide is designed for compression or suspension loading.Slide members and plates are made of 14 gage (0.074) cold rolled steel.Standard mounting hardware package (CA8612-00-0059) is included with each slide assembly, containing #8;-32 x 0.38 slotted pan head screws and #8;-32 KEPS®nuts.Other non-standard options are available including other finishes and lock-in features. These options require a special reference number.
Specifications Cold Rolled Steel
14 (0.074) gauge
Specifications Forward Extension B
22.88 in
Specifications Gdi Reference
CC7000-00-0220
Specifications Installation Sheet
Installation Sheet
Specifications Model
C-7000
Specifications Options
Locking at fully extended position
Specifications Slide Length A
22.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Temperature
-65 to 350 ºF
Specifications Weight Capacity
130 lbs
Specifications Weight Capacity Notes
Load capacity is based on one slide at full extension with the load (center of gravity) at the midpoint of the slide (chassis section). This capacity has a 100% static (non-moving) load safety factor at full extension. It is not intended for operation with loads exceeding specified load capacity. For increased load capacity, multiply the number of slides required for the application.
