C 730 High Voltage Receptacle Assembly
C 730 High Voltage Receptacle Assembly
SKU:HIG-e9b03c
Series C 730 Receptacle: 10 kVDC, 10A, Sealed Design, LGHâ„¢-Compatible, RoHS Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C 730 High Voltage Receptacle Assembly
$49.99
Quantity: 1
Claim Your Seller Account
C 730 High Voltage Receptacle Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 730 Receptacle Bag Assembly is a high-quality, standard part that meets the needs of both consumer and institutional buyers. With a voltage rating of 10 kVDC and a current rating of 10 A, this receptacle is designed for reliable performance in demanding environments. Its sealed design and threaded coupling style ensure secure connections, while the plastic insulation and BeCu contact material with gold finish guarantee durability and conductivity. Compliant with RoHS standards and LGHâ„¢ compatible, this receptacle is ideal for a range of high voltage applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

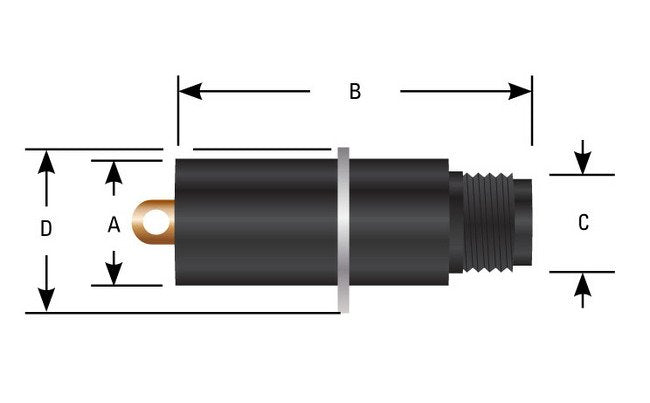

Dimensions A Diameter
.380 in | 9.65 mm
Dimensions B
.620 in | 15.7 mm
Dimensions C
.310 in | 7.9 mm
Dimensions D Diameter
.57 in | 14.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 730 lead assembliesAll series 730 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 730
Specifications Solder Flange
Brass with tin plate
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
