C 735 High Voltage Receptacle Assembly

C 735 High Voltage Receptacle Assembly

HIG-500cfd

High-performance C 735 Receptacle Bag Assembly, 30 kVDC voltage rating, RoHS compliant, ideal for demanding applications.

$49.99
$49.99
Sale

Initiate Order

C 735 High Voltage Receptacle Assembly

C 735 High Voltage Receptacle Assembly

$49.99

Quantity: 1

Claim Your Seller Account

C 735 High Voltage Receptacle Assembly

C 735 High Voltage Receptacle Assembly

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series C 735 Receptacle Bag Assembly is a high-performance solution designed for demanding high voltage applications. With a voltage rating of 30 kVDC, current rating of 10 A, and operating temperature range of -55 to 95°C, this receptacle ensures reliable power transmission in extreme conditions. Featuring a brass solder flange with tin plate, BeCu contact material with gold finish, and sealed receptacle design, it offers secure connections and durability. Compliant with RoHS standards, this non-standard part is compatible with LGH 2LI series lead assemblies, meeting the stringent requirements of institutional and government procurement.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

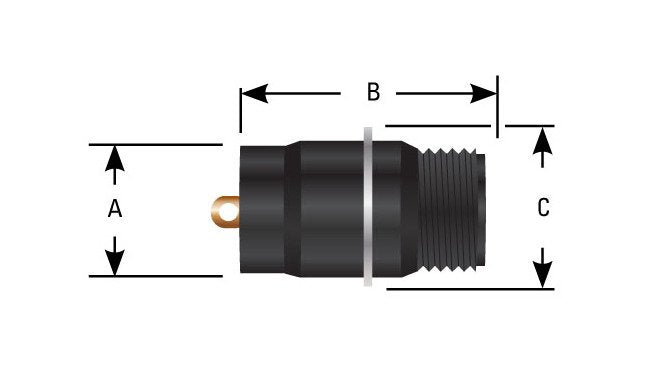

Dimensions A Diameter
.880 in | 22.3 mm
Dimensions B
1.58 in | 40.1 mm
Dimensions C
1.12 in | 28.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 2LI
Specifications Mating Compatibility
All C 735 series lead assembliesAll LGH 2LI series lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Panel Mounting Torque
Solder Flange
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 735
Specifications Solder Flange
Brass with tin plate
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
45 kVDC
Specifications Voltage Rating
30 kVDC
