C 750 Receptacle High Voltage Cable Assembly
C 750 Receptacle High Voltage Cable Assembly
SKU:HIG-74b730
Series C 750 Receptacle: High voltage assembly with 50 kVDC rating, brass solder flange, and BeCu contacts for superior performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
C 750 Receptacle High Voltage Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
C 750 Receptacle High Voltage Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 750 Receptacle is a cutting-edge double-ended plug cable assembly designed for high voltage applications, with a voltage rating of 50 kVDC. This assembly boasts a current rating of 10 A, operating temperature range of -55 to 95 °C, and a robust test voltage of 60 kVDC. Crafted with precision, it features a brass solder flange with tin plate, plastic insulator material, and BeCu contacts with gold finish for optimal performance and durability. The C 750 Receptacle ensures reliable connectivity, meeting high industry standards and offering unmatched quality for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

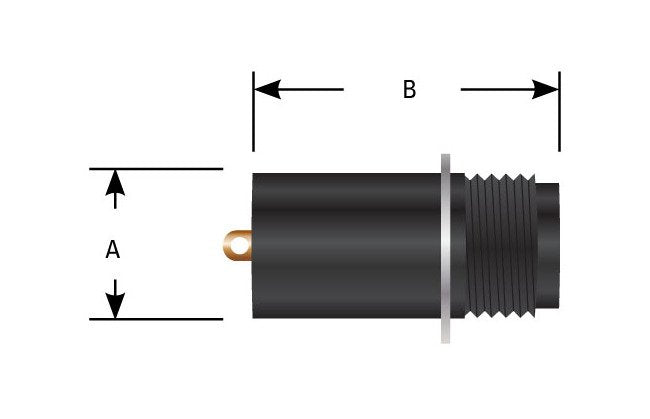

Dimensions A Diameter
1.00 in | 25.4 mm
Dimensions B
2.12 in | 53.8 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 4I
Specifications Mating Compatibility
All C 750 lead assembliesAll LGH 4I series lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Panel Mounting Torque
Solder Flange
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 750
Specifications Solder Flange
Brass with tin plate
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
60 kVDC
Specifications Voltage Rating
50 kVDC
