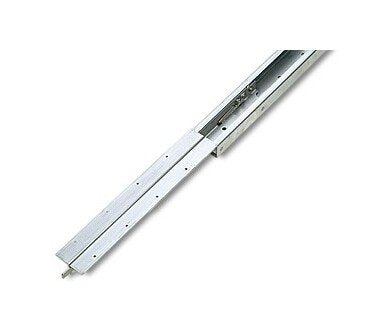

C-938 Roller Bearing Bottom Mount Slide
C-938 Roller Bearing Bottom Mount Slide
SKU:CHA-cdcc72
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C-938 Roller Bearing Bottom Mount Slide
$49.99
Quantity: 1
Claim Your Seller Account
C-938 Roller Bearing Bottom Mount Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0
Standard C-938-LI/LO have a lock-in/lock-out feature.Slide finish is E-Coat conversion coating or clear zinc commercial plating.Load capacity is based on one slide at full extension, with load (center of gravity) at midpoint of the slide (chassis section). For increased load requirements, multiply the number of slides required for the application.Stated load capacity has a 100% static (non-moving) load safety factor at full extension. Slide is not intended to be operated with continuous loading which exceeds stated capacities.Ball bearing rollers are lubricated with -45°F to 350°F temperature range grease.Slide members are made from 12 gage (0.105) cold rolled steel.Other non-standard options including finishes and stainless steel slides are available. These options require a special reference number.No mounting hardware supplied.Slide designed for compression loading only.
Specifications Cold Rolled Steel
12 (0.105) gauge

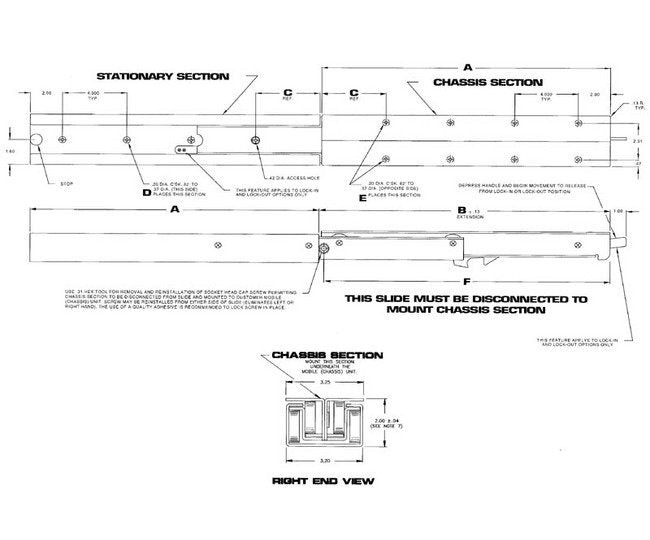

Specifications Forward Extension B
42.06 in
Specifications Gdi Reference
CC5201-00-0420
Specifications Installation Sheet
Installation Sheet
Specifications Model
C-938
Specifications Options
Lock-in features
Specifications Slide Length A
42.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Temperature
-45 to 350 ºF
Specifications Weight Capacity
100 lbs
Specifications Weight Capacity Notes
Load capacity is based on one slide at full extension with the load (center of gravity) at the midpoint of the slide (chassis section). For increased load capacity, multiply the number of slides required for the application. Stated load capacity has a 100% static (non-moving) load safety factor at full extension. Slide is not intended to be operated with continuous loading which exceeds stated capacities.
