C-FAB 10M10 NC High Speed Mechanical Shearing Machine - 10 Gauge
C-FAB 10M10 NC High Speed Mechanical Shearing Machine - 10 Gauge
SKU:SHE-4cb511
Cut steel with precision using the C-FAB 10M10 NC High Speed Shearing Machine - 10 Gauge Capacity. Programmable, efficient, and durable for industrial use.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
C-FAB 10M10 NC High Speed Mechanical Shearing Machine - 10 Gauge
$12,999.99
Quantity: 1
Claim Your Seller Account
C-FAB 10M10 NC High Speed Mechanical Shearing Machine - 10 Gauge
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

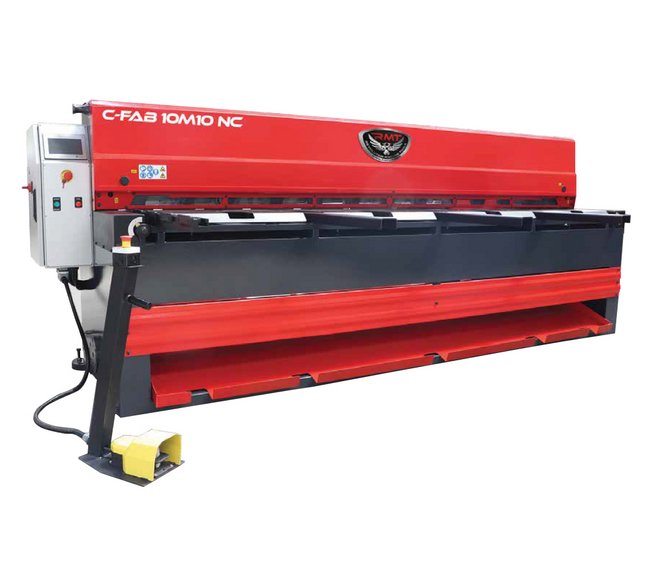

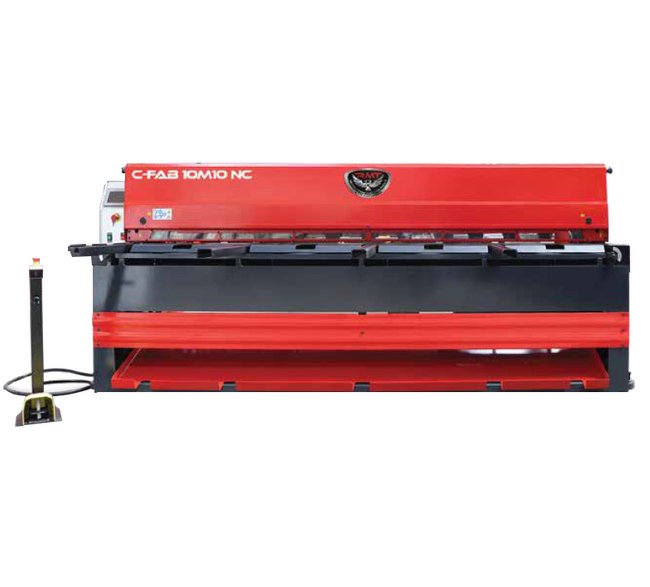

The C-FAB 10M10 NC High Speed Mechanical Shearing Machine is a top-of-the-line industrial solution for cutting mild steel with precision. This machine boasts a maximum cutting length of 10 ft 1 in, a cutting capacity of 10 gauge for mild steel, and a powerful 10 hp motor. Featuring welded steel construction, RMT Easy NC Touch Screen Controller, programmable backgauge steps, and high carbon D2 cutting blades, it ensures efficient, accurate, and versatile cutting operations. With optional features like NC ball screw backgauge and pneumatic sheet support system, this machine offers enhanced functionality for various industrial cutting needs.
Product Specifications
Optional Features

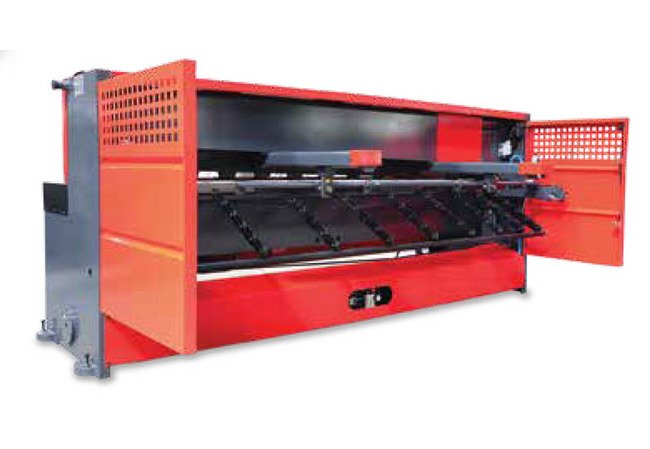

NC ball screw backgauge with 39.4" travelPneumatic sheet support system with both front and rear sheared drop function on all machines up to 10' width. Pneumatic sheet support system with rear material drop function on 12' shears0-180 degree protractor(Deduct) Front operated manual ball screw backgauge with mechanical distance counter (this is a deduction from standard sheer configuration)Brush table supportsLonger squaring arm - per 40"Longer front sheet support arms - per 40"Spare blade setLaser cut line
Specifications Back Gauge Distance
29.5 in
Specifications Construction Material
Welded Steel
Specifications Cutting Capacity Mild Steel
10 gauge
Specifications Cutting Capacity Stainless Steel
12 gauge
Specifications Height
4 ft 7 in.
Specifications Length
12 ft 4 in.
Specifications Maximum Cutting Length
10 ft 1 in.
Specifications Motor Power
10 hp
Specifications Phase
3
Specifications Series
C-FAB
Specifications Speed
41 strokes/min
Specifications Table Height
35 in
Specifications Table Width
21 in
Specifications Voltage
208 V | 460 V
Specifications Weight
8818 lb
Specifications Width
7 ft 5 in.
Standard Features

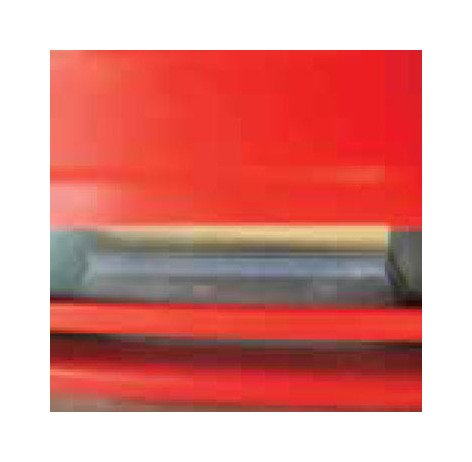

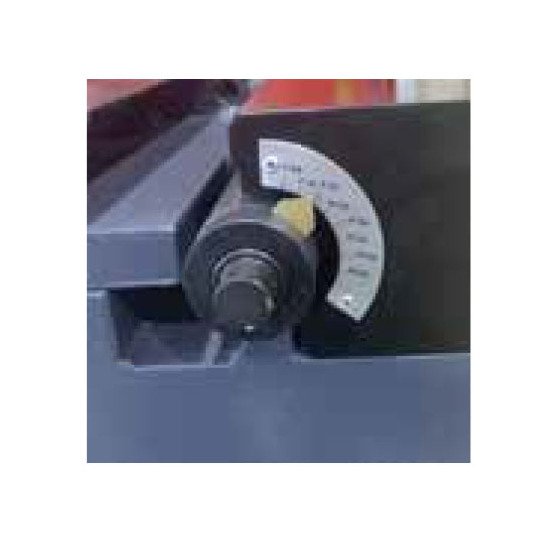

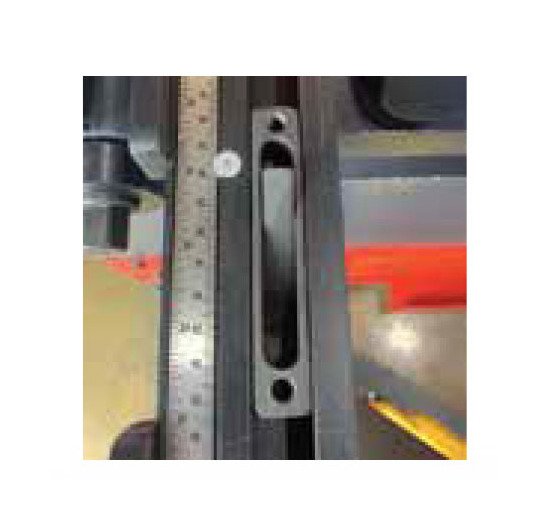

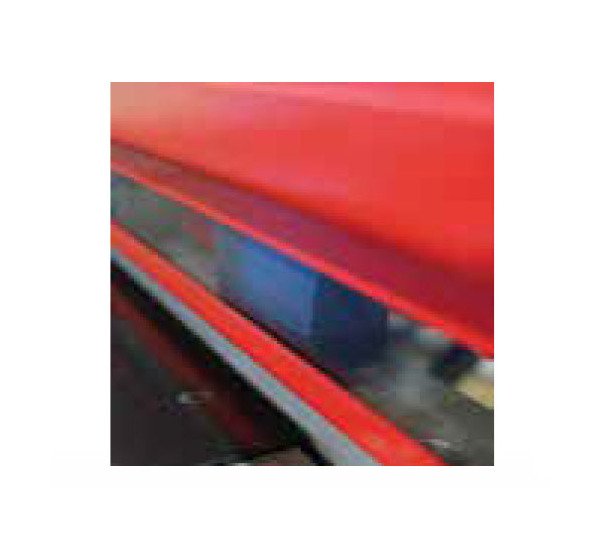

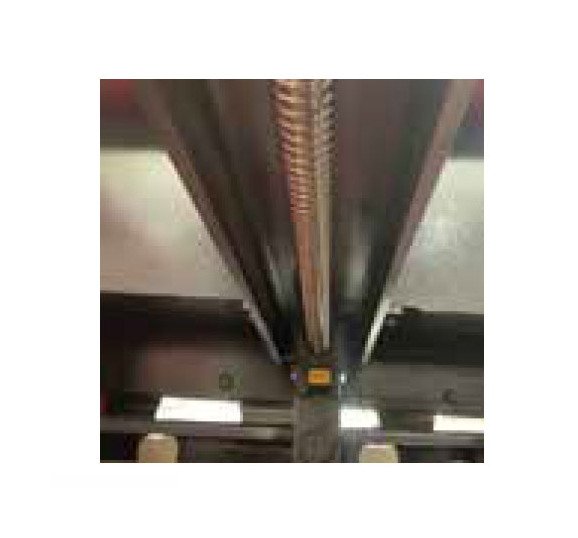

Welded steel constructionRMT Easy NC Touch Screen ControllerCut counterEasy go to backgauge depth with digital position readoutProgrammable multiple backgauge stepsSingle or continuous cycle toggleEasy inch/metric toggleHigh carbon/high chrome D2 cutting blades. Suitable for cutting steel, stainless, galvanized, aluminum, brass and copper (upper blade has 2 cutting edges, bottom blade has 4 cutting edges)Integrated table with built in ball transfersCutting beam working in perfectly sliding, durable Polytetrafluoroethylene (PTFE) slidewaysMovable foot pedalEasy maintenance clutch systemEasy blade gap adjustment in front40" T-slot squaring arm with flip stop and built in inch/metric scale40" front support armsMechanical sheet clamping system with hard rubber non-marring hol-down padLighted work area with integrated shadow/cut line29.5" travel precision hardened and ground ball screw backgauge
