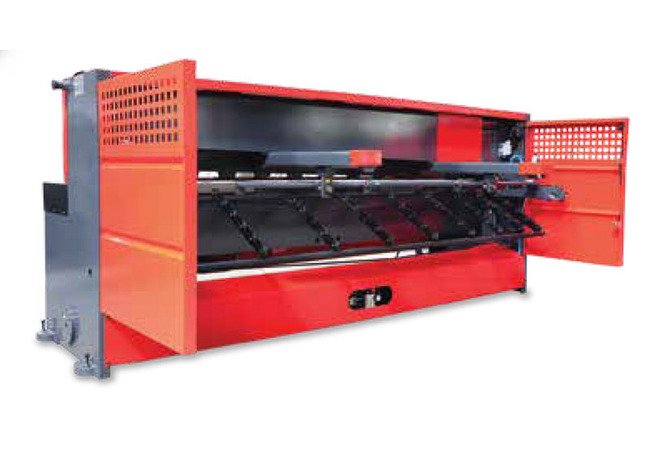

The C-FAB 4M12 NC is a powerhouse in high-speed mechanical shearing, with a maximum cutting length of 4 ft 5 in. and a cutting capacity of 12-gauge mild steel. This RMT machine features a robust welded steel construction, RMT Easy NC Touch Screen Controller, and versatile cutting capabilities for various materials including steel, stainless, galvanized, aluminum, brass, and copper. With programmable backgauge steps, precise blade gap adjustment, and a lighted work area, this shearing machine ensures efficient and accurate cutting operations suitable for industrial and institutional needs.
Product Specifications
Optional Features
NC ball screw backgauge with 39.4" travelPneumatic sheet support system with both front and rear sheared drop function on all machines up to 10' width. Pneumatic sheet support system with rear material drop function on 12' shears0-180 degree protractor(Deduct) Front operated manual ball screw backgauge with mechanical distance counter (this is a deduction from standard sheer configuration)Brush table supportsLonger squaring arm - per 40"Longer front sheet support arms - per 40"Spare blade setLaser cut line
Specifications Back Gauge Distance
29.5 in
Specifications Construction Material
Welded Steel
Specifications Cutting Capacity Mild Steel
12 gauge
Specifications Cutting Capacity Stainless Steel
16 gauge
Specifications Height
4 ft 7 in.
Specifications Length
4 ft 5 in.
Specifications Maximum Cutting Length
4 ft 5 in.
Specifications Motor Power
10 hp
Specifications Phase
3
Specifications Series
C-FAB
Specifications Speed
35 strokes/min
Specifications Table Height
35 in
Specifications Table Width
21 in
Specifications Voltage
208 V | 460 V
Specifications Weight
2755 lb
Specifications Width
7 ft 5 in.
Standard Features

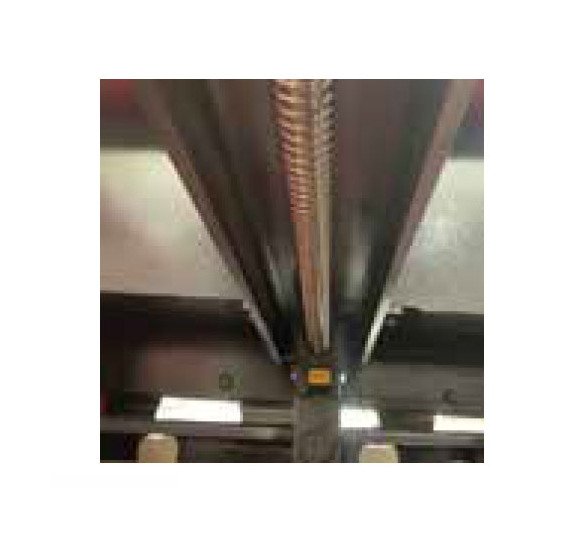

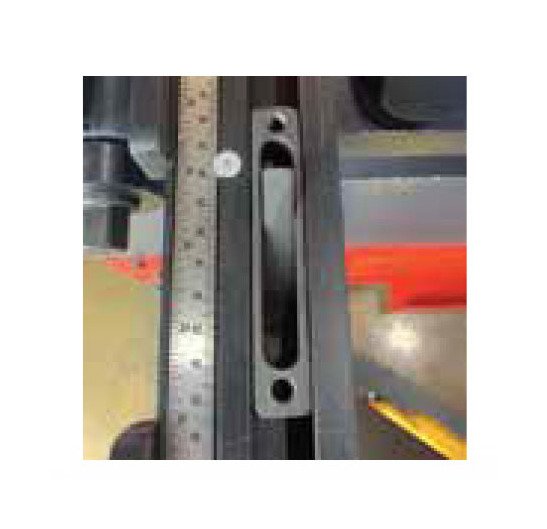

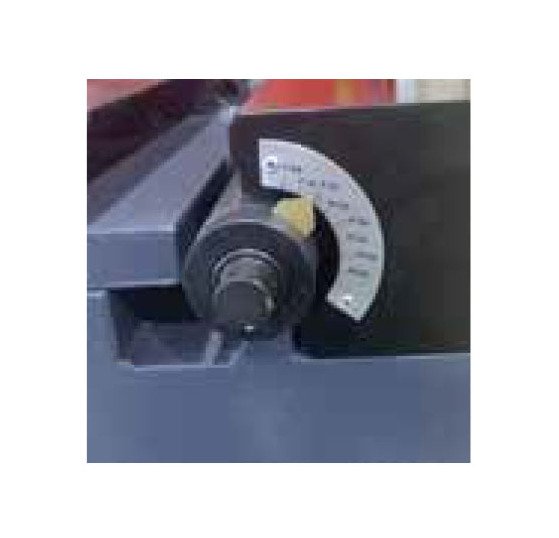

Welded steel constructionRMT Easy NC Touch Screen ControllerCut counterEasy go to backgauge depth with digital position readoutProgrammable multiple backgauge stepsSingle or continuous cycle toggleEasy inch/metric toggleHigh carbon/high chrome D2 cutting blades. Suitable for cutting steel, stainless, galvanized, aluminum, brass and copper (upper blade has 2 cutting edges, bottom blade has 4 cutting edges)Integrated table with built in ball transfersCutting beam working in perfectly sliding, durable Polytetrafluoroethylene (PTFE) slidewaysMovable foot pedalEasy maintenance clutch systemEasy blade gap adjustment in front40" T-slot squaring arm with flip stop and built in inch/metric scale40" front support armsMechanical sheet clamping system with hard rubber non-marring hol-down padLighted work area with integrated shadow/cut line29.5" travel precision hardened and ground ball screw backgauge
