C-Series 720 Cable Assembly Non-Positive Stop Single-Ended, Shielded

C-Series 720 Cable Assembly Non-Positive Stop Single-Ended, Shielded

HIG-5d00eb

C-Series 720 Cable Assembly: Single-Ended Plug design for up to 30 kVDC, reliable performance in extreme conditions.

$99.99
$99.99
Sale

Initiate Order

C-Series 720 Cable Assembly Non-Positive Stop Single-Ended, Shielded

C-Series 720 Cable Assembly Non-Positive Stop Single-Ended, Shielded

$99.99

Quantity: 1

Claim Your Seller Account

C-Series 720 Cable Assembly Non-Positive Stop Single-Ended, Shielded

C-Series 720 Cable Assembly Non-Positive Stop Single-Ended, Shielded

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The C-Series 720 Cable Assembly features a Single-Ended Plug design suitable for high voltage applications up to 30 kVDC. With an altitude rating of 70,000 ft and an operating temperature range of -55 to 95 °C, this assembly ensures reliable performance in challenging environments. Designed for compatibility with various receptacles and insulator material made of durable plastic, it meets non-standard part requirements. The gold-finished BeCu contact material ensures secure connections, making it a dependable choice for high voltage single pin connectors.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

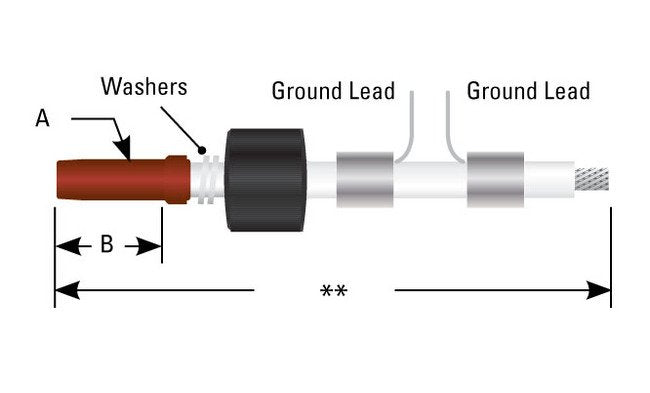

Dimensions A Diameter
.287 in | 7.2 mm
Dimensions B
.88 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH LI
Specifications Mating Compatibility
All C 720 series receptaclesAll series 720 receptaclesAll LGH LI series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 720
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
White 0.265 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
R790-3516-2
