C Series 720 High Voltage Cable Assembly
C Series 720 High Voltage Cable Assembly
SKU:HIG-a10797
High voltage C Series 720 Cable Assembly with 20kVDC voltage rating and LGH LI compatibility. Ideal for demanding applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
C Series 720 High Voltage Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
C Series 720 High Voltage Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The C Series 720 Cable Assembly Non-Positive Stop (washers) Single-Ended is a high-quality, non-standard part designed for high voltage applications with a voltage rating of 20 kVDC and a test voltage of 25 kVDC. Featuring Altitude/Reduced Pressure Rating up to 70,000 ft, this assembly is suitable for various environments. The assembly is LGH LI compatible and offers a current rating of 10A, ensuring reliable performance. With insulator material made of plastic and wire insulation featuring white 0.265 Dia. silicone rubber, this assembly meets stringent industry standards for durability and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

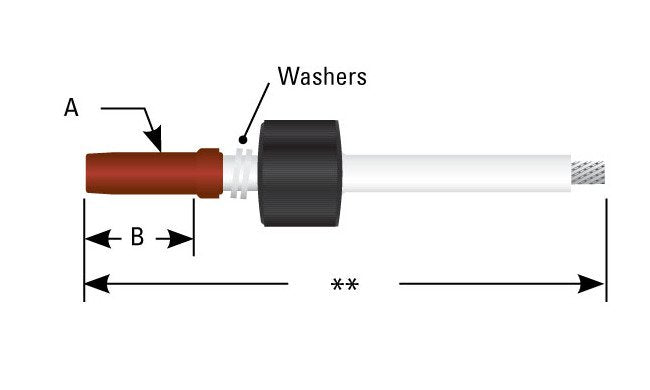

Dimensions A Diameter
.287 in | 7.2 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH LI
Specifications Mating Compatibility
All C 720 series receptaclesAll series 720 receptaclesAll LGH LI series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 720
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
White 0.265 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
R790-3516-6
