C Series 720 Receptacle Bag Assembly
C Series 720 Receptacle Bag Assembly
SKU:HIG-124722
Discover reliability and versatility with the C Series 720 Receptacle Bag Assembly, ideal for high voltage applications. Test voltage: 25 kVDC, Current rating: 10 A.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
C Series 720 Receptacle Bag Assembly
$45.99
Quantity: 1
Claim Your Seller Account
C Series 720 Receptacle Bag Assembly
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The C Series 720 Receptacle Bag Assembly is designed for high voltage applications, boasting a test voltage of 25 kVDC and a current rating of 10 A. With a sealed receptacle and insulator material made of plastic, this non-standard part ensures reliable performance in altitudes up to 70,000 ft. The threaded coupling style and compatibility with various lead assemblies make it versatile for different setups. Crafted with BeCu contacts finished in gold, this assembly guarantees both durability and conductivity, meeting the stringent demands of high voltage environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

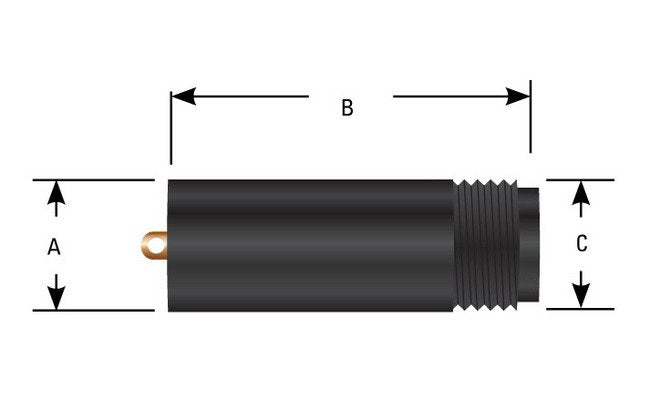

Dimensions A Diameter
.50 in | 12.7 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions C
.50 in | 12.7 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH LI
Specifications Mating Compatibility
All C 720 1520 lead assembliesAll LGH LI series lead assembliesAll series 720 lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 720
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC
Specifications Voltage Rating
20 kVDC
