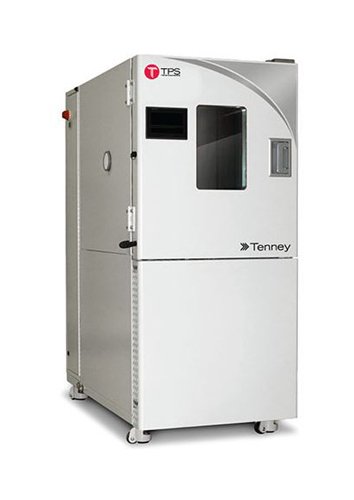

C20S Tenney C-EVO Environmental Cycling Test Chamber
C20S Tenney C-EVO Environmental Cycling Test Chamber
SKU:TEN-3d7174
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C20S Tenney C-EVO Environmental Cycling Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
C20S Tenney C-EVO Environmental Cycling Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Since 1932 Tenney has pioneered the design and manufacturing of environmental testing equipment. Designed for value, reliability and performance, C-EVO is a world class environmental cycling test chamber loaded with standard features and advanced technological upgrades: Largest temperature and humidity range in the industry Smallest equipment footprint in the industry Superior heat capacity (kW), cooling capacity (HP/BTU) and air flow capacity (CFM) deliver the best temperature change rates and uniformity in the industry Redundant user and equipment safety features are standard
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
500 CFM
Specifications Capacity
20 ft³
Specifications Condenser
Air Cooled - Standard Water Cooled - Option
Specifications Empty Chamber Cooling Rate From 85 To 20c
3.2 ºC/min
Specifications Empty Chamber Cooling Time From 85 To 20c
33 min
Specifications Empty Chamber Heating Rate From 20 To 85c
4 ºC/min
Specifications Empty Chamber Heating Rate From 34c To Ambient
4.2 ºC/min
Specifications Empty Chamber Heating Time From 20 To 85c
26 min
Specifications Empty Chamber Heating Time From 34c To Ambient
14 min
Specifications Exterior Depth
65 in | 165 cm
Specifications Exterior Height
78 in | 198 cm
Specifications Exterior Width
40 in | 102 cm
Specifications Features
Smart 1.0TM controller | Ethernet port | USB port | Heated viewing glass window | Chamber light | Two 3 Inch (in) cable ports | Solid-state humidity sensor | Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Thermal expansion valves | FM approved safety OTP | Backup safety thermal cutoff | Main electrical disconnect LOTO | Chamber vent port | One shelf standard | UL 508A compliant
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
40 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
20 A
Specifications Heat Capacity
3 kW
Specifications Live Load At 18c
1160 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
32 A
Specifications Load Current At 460 Volts V 1 Phase 60 Hertz Hz
16 A
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-35 ºC
Specifications Phase
1
Specifications Refrigeration
2 hp
Specifications Temperature Control
±0.3ºC after stabilization
Specifications Temperature Uniformity At 65c
0.3 ºC
Specifications Voltage
203 to 208 V | 460 V
Specifications Volume
566 L
Specifications Weight
1100 lb
Specifications Workspace Depth
32 in | 81 cm
Specifications Workspace Height
36 in | 91 cm
Specifications Workspace Width
30 in | 76 cm
