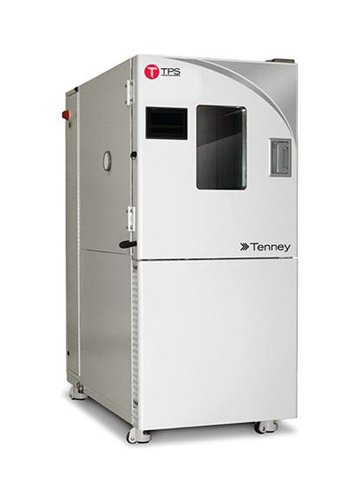

C30C Tenney C-EVO Environmental Cycling Test Chamber
C30C Tenney C-EVO Environmental Cycling Test Chamber
SKU:TEN-0cc632
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C30C Tenney C-EVO Environmental Cycling Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
C30C Tenney C-EVO Environmental Cycling Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Since 1932 Tenney has pioneered the design and manufacturing of environmental testing equipment. Designed for value, reliability and performance, C-EVO is a world class environmental cycling test chamber loaded with standard features and advanced technological upgrades: Largest temperature and humidity range in the industry Smallest equipment footprint in the industry Superior heat capacity (kW), cooling capacity (HP/BTU) and air flow capacity (CFM) deliver the best temperature change rates and uniformity in the industry Redundant user and equipment safety features are standard
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
500 CFM
Specifications Capacity
30 ft³
Specifications Condenser
Air Cooled - Standard Water Cooled - Option
Specifications Empty Chamber Cooling Rate From 125 To 40c
2.6 ºC/min
Specifications Empty Chamber Cooling Rate From 180 To 65c
1.8 ºC/min
Specifications Empty Chamber Cooling Rate From 85 To 40c
2.3 ºC/min
Specifications Empty Chamber Cooling Rate From Ambient To 40c
2.3 ºC/min
Specifications Empty Chamber Cooling Rate From Ambient To 68c
1.1 ºC/min
Specifications Empty Chamber Cooling Time From 125 To 40c
63 min
Specifications Empty Chamber Cooling Time From 180 To 65c
136 min
Specifications Empty Chamber Cooling Time From 85 To 40c
54 min
Specifications Empty Chamber Cooling Time From Ambient To 40c
28 min
Specifications Empty Chamber Cooling Time From Ambient To 68c
85 min
Specifications Empty Chamber Heating Rate From 34c To Ambient
3.5 ºC/min
Specifications Empty Chamber Heating Rate From 40 To 125c
3.3 ºC/min
Specifications Empty Chamber Heating Rate From 40 To 85c
3.3 ºC/min
Specifications Empty Chamber Heating Rate From 65 To 180c
2.9 ºC/min
Specifications Empty Chamber Heating Rate From 68c To Ambient
3.5 ºC/min
Specifications Empty Chamber Heating Time From 34c To Ambient
17 min
Specifications Empty Chamber Heating Time From 40 To 125c
50 min
Specifications Empty Chamber Heating Time From 40 To 85c
38 min
Specifications Empty Chamber Heating Time From 65 To 180c
84 min
Specifications Empty Chamber Heating Time From 68c To Ambient
25 min
Specifications Exterior Depth
73 in | 185 cm
Specifications Exterior Height
78 in | 198 cm
Specifications Exterior Width
46 in | 117 cm
Specifications Features
Smart 1.0TM controller | Ethernet port | USB port | Heated viewing glass window | Chamber light | Two 3 Inch (in) cable ports | Solid-state humidity sensor | Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Thermal expansion valves | FM approved safety OTP | Backup safety thermal cutoff | Main electrical disconnect LOTO | Chamber vent port | One shelf standard | UL 508A compliant
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
60 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
30 A
Specifications Heat Capacity
3 kW
Specifications Live Load At 18c
1610 W
Specifications Live Load At 40c
1260 W
Specifications Live Load At 54c
940 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
45 A
Specifications Voltage
203 to 208 V | 460 V
Specifications Volume
850 L
Specifications Workspace Depth
40 in | 102 cm
Specifications Workspace Height
36 in | 91 cm
Specifications Workspace Width
36 in | 91 cm
