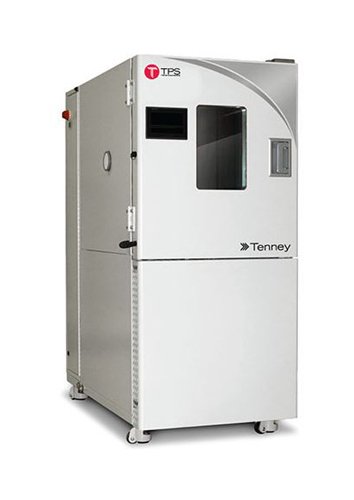

C40RS Tenney C-EVO Environmental Cycling Test Chamber
C40RS Tenney C-EVO Environmental Cycling Test Chamber
SKU:TEN-13b7a0
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
C40RS Tenney C-EVO Environmental Cycling Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
C40RS Tenney C-EVO Environmental Cycling Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Since 1932 Tenney has pioneered the design and manufacturing of environmental testing equipment. Designed for value, reliability and performance, C-EVO is a world class environmental cycling test chamber loaded with standard features and advanced technological upgrades: Largest temperature and humidity range in the industry Smallest equipment footprint in the industry Superior heat capacity (kW), cooling capacity (HP/BTU) and air flow capacity (CFM) deliver the best temperature change rates and uniformity in the industry Redundant user and equipment safety features are standard
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
500 CFM
Specifications Capacity
40 ft³
Specifications Condenser
Air Cooled - Standard Water Cooled - Option
Specifications Empty Chamber Cooling Rate From 85 To 20c
1.9 ºC/min
Specifications Empty Chamber Cooling Time From 85 To 20c
54 min
Specifications Empty Chamber Heating Rate From 20 To 85c
2.6 ºC/min
Specifications Empty Chamber Heating Rate From 34c To Ambient
2.8 ºC/min
Specifications Empty Chamber Heating Time From 20 To 85c
40 min
Specifications Empty Chamber Heating Time From 34c To Ambient
21 min
Specifications Exterior Depth
77 in | 196 cm
Specifications Exterior Height
82 in | 208 cm
Specifications Exterior Width
50 in | 127 cm
Specifications Features
Smart 1.0TM controller | Ethernet port | USB port | Heated viewing glass window | Chamber light | Two 3 Inch (in) cable ports | Solid-state humidity sensor | Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Thermal expansion valves | FM approved safety OTP | Backup safety thermal cutoff | Main electrical disconnect LOTO | Chamber vent port | One shelf standard | UL 508A compliant
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
50 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
30 A
Specifications Heat Capacity
3 kW
Specifications Humidifier Capacity
2 kW
Specifications Live Load At 18c
630 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
40 A
Specifications Load Current At 460 Volts V 1 Phase 60 Hertz Hz
20 A
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-35 ºC
Specifications Phase
1
Specifications Refrigeration
2 hp
Specifications Relative Humidity Control
2 %
Specifications Relative Humidity Range
10 to 95 %
Specifications Temperature Control
±0.3ºC after stabilization
Specifications Temperature Uniformity At 65c
0.3 ºC
Specifications Voltage
203 to 208 V | 460 V
Specifications Volume
1132 L
Specifications Weight
1350 lb
Specifications Workspace Depth
44 in | 112 cm
Specifications Workspace Height
40 in | 102 cm
Specifications Workspace Width
40 in | 102 cm
