C65V310, 31 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven

C65V310, 31 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven

SKU:GRU-f4f201

N/A

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

C65V310, 31 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven

C65V310, 31 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven

$49.99

Quantity: 1

Claim Your Seller Account

C65V310, 31 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven

C65V310, 31 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

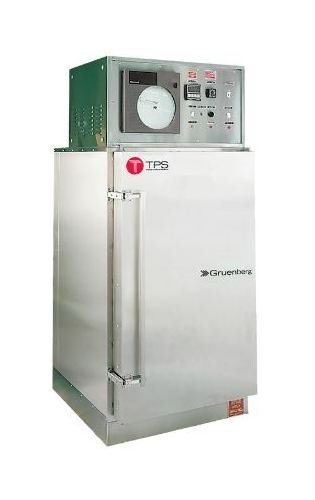

Gruenberg designs and manufactures a complete line of standard and custom industrial cabinet ovens to accommodate a variety of thermal processing applications up to 1200°F, which are ideally suited for annealing, aging, core hardening, drying, preheating, curing, and component testing. With additional options, they can also be used for applications such as epoxy, plastic, and rubber curing; paint and varnish baking; textile drying; and sterilizing.

Product Specifications

Specifications Air Flow
Vertical
Specifications Circulation
1800 CFM
Specifications Exterior Depth
44 in | 111.8 cm
Specifications Exterior Height
105 in | 266.7 cm
Specifications Exterior Width
60 in | 152.4 cm
Specifications Gruenberg Industrial Oven Features
chamber so there is no radiant influence on the work in process | CHIL construction ensures minimal heat transfer from oven chamber to the exterior | Energy-efficient, Incoloy® sheathed, seamless tubular heaters | Heating elements are suspended in the plenum, which is adjacent to the process | Heavy-duty, fully welded structural steel frame | Insulation is moisture-proof, non-combustible, non-settling, and asbestos-free | Lid is constructed using a structural steel frame to ensure sealing integrity | Removable side and back walls for easy clean-up and maintenance
Specifications Heater Wattage
22.5 kW
Specifications Insulation Thickness Inches
4-low
Specifications Interior Depth
30 in | 76.2 cm
Specifications Interior Height
60 in | 152.4 cm
Specifications Interior Volume
31 ft³
Specifications Interior Width
30 in | 76.2 cm
Specifications Maximum Temperature
650 ºF
Specifications Shipping Weight
1450 lb
