Cablecraft® Unidrum Lever Control Specialty Cables - Red Knob, Utility Type

Name: Cablecraft® Unidrum Lever Control Specialty Cables - Red Knob, Utility Type
Brand: Lexco Cable Manufacturing
SKU: PUS-d7200f
Price: 79.99 USD
Availability: OutOfStock

SKU:PUS-d7200f

Versatile Cablecraft® Unidrum Lever Control Specialty Cables for precise, reliable control in various applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

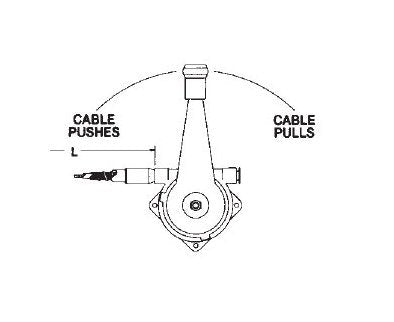

The Cablecraft® Unidrum Lever Control Specialty Cables offer versatile lever/cable combinations designed for light lever controls. With a red knob for easy identification, an upper left exit cable position, and grooved swivel output end configuration, these cables provide precise control. The light-duty wire rope with 3" cable travel and approximately 135º lever travel ensures smooth operation. With an overall length of 120", these cables deliver reliable performance in a variety of applications.

Product Specifications

Specifications Cable Exit Position

CableCraft Unidrum Lever Upper Mount, Left Exit

Specifications Cable Travel

3 "

Specifications Knob Color

Red 165-505-102

Specifications Lever Travel

Approx. 135Âº

Specifications Output End Configuration

Grooved Swivel

Specifications Overall Length In

120 "

Specifications Swivel Dimension A Per Stroke

2 to 6.56 "

Specifications Swivel Dimension A Per Stroke Extended

3 to 8.56 "

Specifications Type

Utility

Specifications Wire Rope Dia

Light Duty

Cablecraft® Unidrum Lever Control Specialty Cables - Red Knob, Utility Type
