Cablecraft Control Head Cable

Cablecraft Control Head Cable

SKU:PUS-cd0dd5

Premium trim-to-length Control Head Cable for precise performance in micro-adjust applications. Stainless steel construction with low friction conduit. Customizable fittings and seal options.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Cablecraft Control Head Cable

Cablecraft Control Head Cable

$49.99

Quantity: 1

Claim Your Seller Account

Cablecraft Control Head Cable

Cablecraft Control Head Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

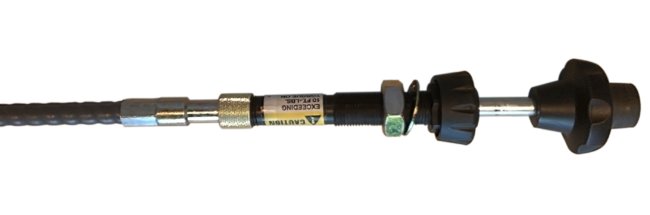

The Cablecraft Control Head Cable is expertly crafted with a trim-to-length design and features a stainless steel solid wire innermember, ensuring durability and precision performance. With up to 3" travel, a 5" minimum bend radius, and a 20 lb pull load rating, this control cable is ideal for applications requiring micro-adjustability, low friction conduit, and very light duty operations. Choose from various output end fittings and seal options for enhanced customization and reliability.

Product Specifications

Specifications Cable Travel
1 " | 2 " | 3 "
Specifications Conduit Size
Very Light Duty
Specifications Conduit Type
Low Friction
Specifications Control Head Type
Micro Adjust
Specifications Micro Adjust Only Cable Options
D - Disconnect Feature | F - Friction Lock Accessory
Specifications Output End Fittings
2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged
Specifications Seal Options
5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls
Specifications Stainless Steel Options
Stainless Steel End Rod, Support Tube
CAGE
0T9L4
NAICS
332510
PSC
4030
