Cablecraft Unidrum Lever Control Cable

Cablecraft Unidrum Lever Control Cable

SKU:PUS-746ebc

Versatile Cablecraft Unidrum Lever Control Cable for precise and smooth operation in light lever control applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Cablecraft Unidrum Lever Control Cable

Cablecraft Unidrum Lever Control Cable

$49.99

Quantity: 1

Claim Your Seller Account

Cablecraft Unidrum Lever Control Cable

Cablecraft Unidrum Lever Control Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Cablecraft Unidrum Lever Control Cable is a versatile solution for a variety of light lever control applications. With options for different lever/cable combinations, this cable offers precise control and smooth operation. The black knob, grooved swivel, and upper mount with left exit ensure ease of use and durability. With a very light-duty wire rope, a travel length of 2 inches for the cable and approximately 90 degrees for the lever, this utility type cable is designed for efficiency and reliability. The overall length of 120 inches and swivel dimensions per stroke provide flexibility and customization in usage.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Left Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Black 165-505-101
Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "

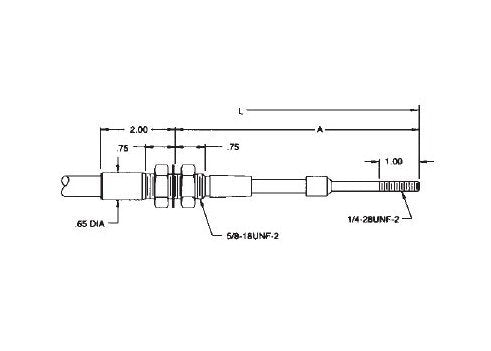

Specifications Swivel Dimension A Per Stroke
2 to 6.25 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.25 "
Specifications Type
Utility
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
