Cablecraft Unidrum Lever Control Cable Kit
Cablecraft Unidrum Lever Control Cable Kit
SKU:PUS-44bdae
Versatile Cablecraft® Unidrum Lever Control Cable Kit for precise and smooth light lever controls.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Cablecraft Unidrum Lever Control Cable Kit
$69.99
Quantity: 1
Claim Your Seller Account
Cablecraft Unidrum Lever Control Cable Kit
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

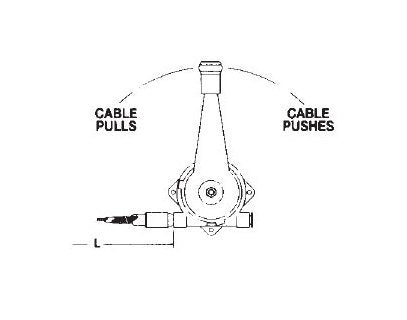

The Cablecraft® Unidrum Lever Control Cable Kit offers exceptional versatility for light lever controls. Featuring a black knob, left exit cable position, and a threaded swivel output configuration, this utility-type cable kit provides smooth operation with approximately 90 degrees lever travel. With an overall length of 120 inches, adjustable swivel dimensions, and very light-duty wire rope, this kit ensures precise control and durability in various applications.
Product Specifications
Specifications Cable Exit Position
CableCraft Unidrum Lever Lower Mount, Left Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Black 165-505-101
Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Threaded Swivel
Specifications Overall Length In
120 "
Specifications Swivel Dimension A Per Stroke
2 to 6.94 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.94 "
Specifications Type
Utility
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
