Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

SKU:PUS-4f1bce

Versatile Cablecraft Unidrum Lever Control Cables for precise lever control in multiple applications. Featuring black knob, grooved swivel, and light-duty wire rope.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

$129.99

Quantity: 1

Claim Your Seller Account

Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Cablecraft Unidrum Lever Control Specialty Cables combine precision and durability in a versatile design suitable for various applications. With a black knob for easy gripping, CableCraft Unidrum Lever Upper Mount, and a right exit cable position, these utility cables offer a smooth lever travel of approximately 90 degrees. The grooved swivel output end configuration ensures reliable performance, while the light-duty wire rope guarantees flexibility. Operating at an overall length of 120 inches, the Cablecraft Unidrum Lever Control Cables provide a swivel dimension ranging from 2 to 6.56 inches per stroke, extendable up to 8.56 inches, offering exceptional control and efficiency.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Right Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Black 165-505-101

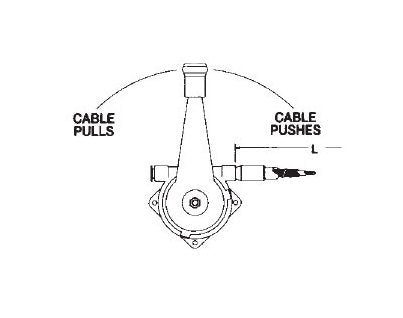

Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "

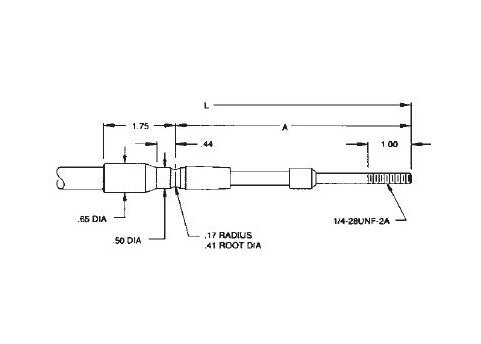

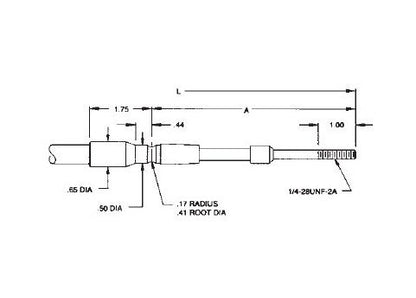

Specifications Swivel Dimension A Per Stroke
2 to 6.56 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.56 "
Specifications Type
Utility
Specifications Wire Rope Dia
Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
