Cablecraft Unidrum Lever Control Cables
Cablecraft Unidrum Lever Control Cables
SKU:PUS-cb515c
Precise control with Cablecraft Unidrum Lever Cables. Durable design for versatile applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Cablecraft Unidrum Lever Control Cables
$99.99
Quantity: 1
Claim Your Seller Account
Cablecraft Unidrum Lever Control Cables
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cablecraft Unidrum Lever Control Specialty Cables provide precise and reliable control for a variety of applications. With optional lever/cable combinations, these cables offer versatility for light lever controls. The cables feature a Very Light Duty wire rope, a grooved cap output end configuration, and an approximate 135° lever travel, ensuring smooth operation and durability. With an overall length of 120 inches, these cables are suitable for a range of control setups.
Product Specifications
Specifications Cable Exit Position
CableCraft Unidrum Lever Lower Mount, Right Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Black 165-505-101

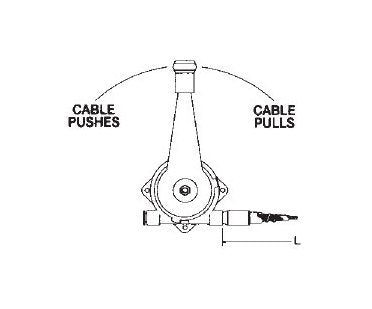

Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Grooved Cap
Specifications Overall Length In
120 "

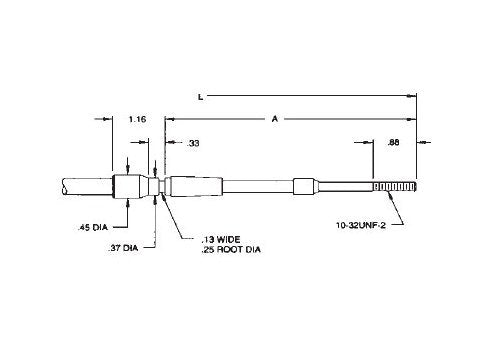

Specifications Swivel Dimension A Per Stroke
2 to 6.25 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.25 "
Specifications Type
Bristow®
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
