Cablecraft Unidrum Lever Control Cables
Cablecraft Unidrum Lever Control Cables
SKU:PUS-7d1527
Enhance control precision with Cablecraft Unidrum Lever Control Cables. Ideal for light lever controls.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Cablecraft Unidrum Lever Control Cables
$129.99
Quantity: 1
Claim Your Seller Account
Cablecraft Unidrum Lever Control Cables
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

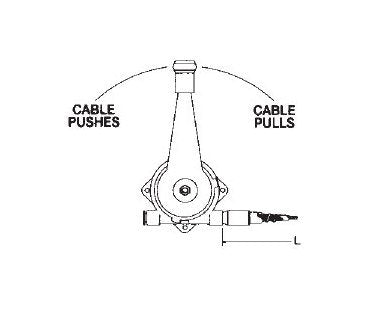

The Cablecraft Unidrum Lever Control Specialty Cables provide precise control for a variety of applications. With optional lever/cable combinations and very light-duty wire rope, these cables offer smooth operation and durability. Featuring a Grooved Cap output end configuration and a 120" overall length, they ensure reliable performance. Ideal for light lever controls, these cables have a red knob, 2" cable travel, and approximately 90º lever travel.
Product Specifications
Specifications Cable Exit Position
CableCraft Unidrum Lever Lower Mount, Right Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Red 165-505-102
Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Grooved Cap
Specifications Overall Length In
120 "

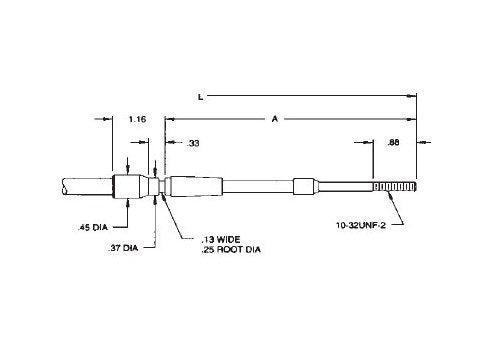

Specifications Swivel Dimension A Per Stroke
2 to 6.25 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.25 "
Specifications Type
Bristow®
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
