Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

SKU:PUS-639f42

Enhance control precision with Cablecraft Unidrum Lever Control Cables. Durable, versatile, and reliable for various utility applications.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

$129.99

Quantity: 1

Claim Your Seller Account

Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Cablecraft Unidrum Lever Control Specialty Cables combine precision control with durability, featuring a red knob for intuitive operation. With a cable exit position optimized for mounting and a grooved swivel configuration at the output end, these cables offer reliable performance in utility applications. The light-duty wire rope provides a 3" travel capacity, accompanied by an approximate 135º lever travel for versatile usage. Measuring 120" in overall length, the swivel dimensions allow smooth strokes ranging from 2 to 8.56". Ideal for light lever control applications, these cables ensure superior functionality and lasting quality.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Lower Mount, Right Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Red 165-505-102

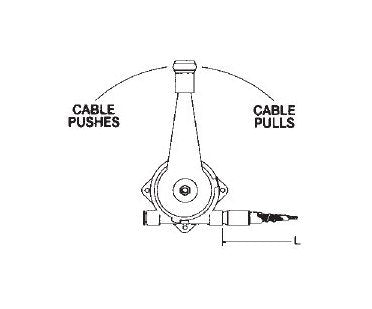

Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "

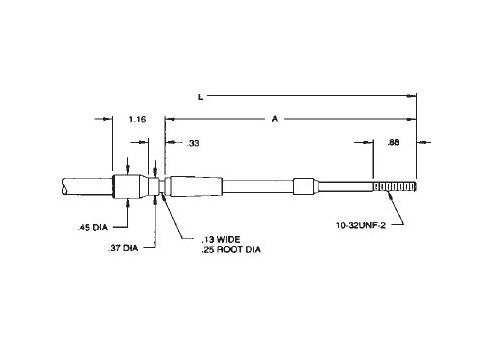

Specifications Swivel Dimension A Per Stroke
2 to 6.56 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.56 "
Specifications Type
Utility
Specifications Wire Rope Dia
Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
