Enhance your control capabilities with Cablecraft Unidrum Lever Control Specialty Cables. These cables offer precise control and durability for a variety of applications, especially in light lever controls. The optional lever/cable combinations provide versatility and ease of use, making them ideal for both consumer and institutional needs. With a very light-duty wire rope diameter and threaded cap output end configuration, these cables ensure reliable performance and long-term durability.
Product Specifications
Specifications Cable Exit Position

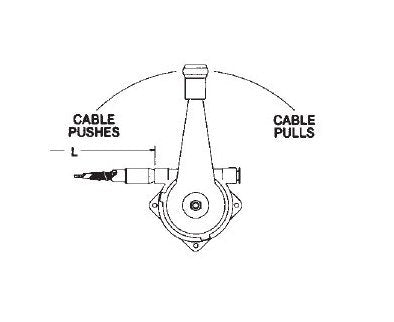

CableCraft Unidrum Lever Upper Mount, Left Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Red 165-505-102
Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Threaded Cap
Specifications Overall Length In
120 "

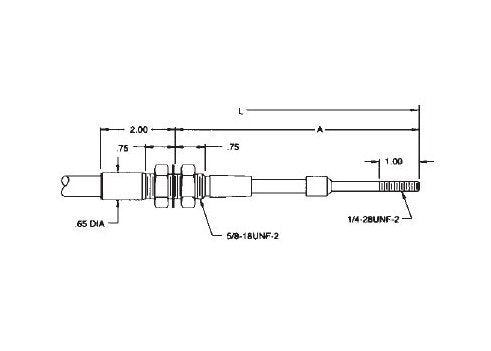

Specifications Swivel Dimension A Per Stroke
2 to 7.18 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 9.18 "
Specifications Type
Bristow®
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
