Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

SKU:PUS-fd1201

Enhance control precision with Cablecraft Unidrum Lever Control Cables. Light-duty wire rope, threaded swivel output, 120-inch length, and 90-degree lever travel. Ideal for versatile applications.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

$69.99

Quantity: 1

Claim Your Seller Account

Cablecraft Unidrum Lever Control Cables

Cablecraft Unidrum Lever Control Cables

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance control and precision with Cablecraft Unidrum Lever Control Cables. This utility-type cable features light-duty wire rope, threaded swivel output end configuration, and an overall length of 120 inches. With a red knob for easy visibility, the lever offers approximately 90 degrees of travel, ensuring smooth operation. The flexible cable exit positions and swivel dimensions make it versatile for various applications, meeting the demands of institutional buyers seeking top-tier control solutions.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Right Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Red 165-505-102

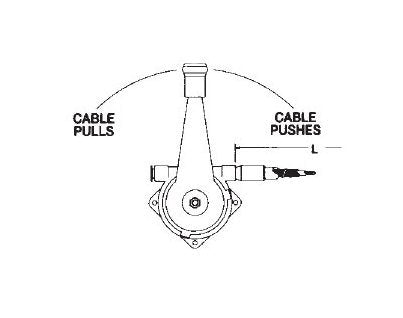

Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Threaded Swivel
Specifications Overall Length In
120 "

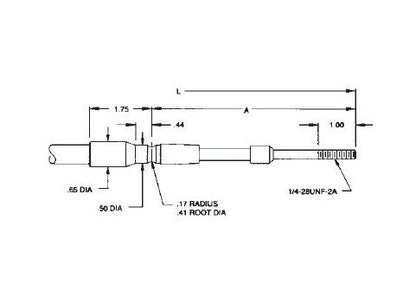

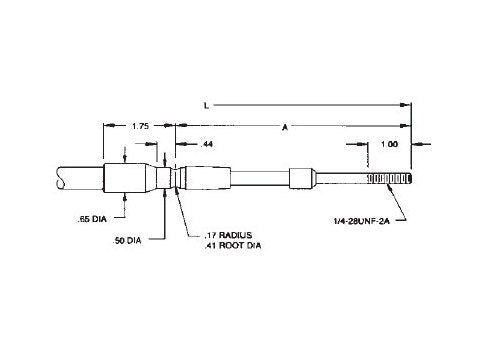

Specifications Swivel Dimension A Per Stroke
2 to 7.18 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 9.18 "
Specifications Type
Utility
Specifications Wire Rope Dia
Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
