The Cablecraft® Unidrum Lever Control Specialty Cables provide precise and reliable control in various applications. With a black knob, upper left exit cable position, grooved cap output end configuration, and very light duty wire rope, these cables offer a smooth travel experience. Offering 3" cable travel and approximately 135º lever travel, the overall 120" length ensures versatility. The swivel dimension A per stroke ranges from 2 to 7.18", extending to 3 to 9.18" when necessary. Designed for light lever controls, these cables are durable and efficient for a wide range of needs.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Left Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Black 165-505-101

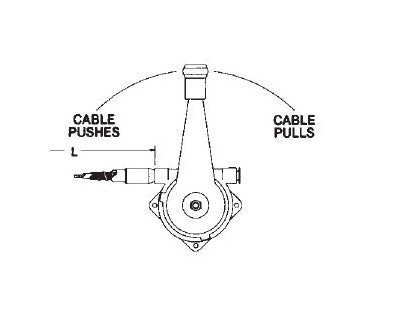

Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Grooved Cap
Specifications Overall Length In
120 "

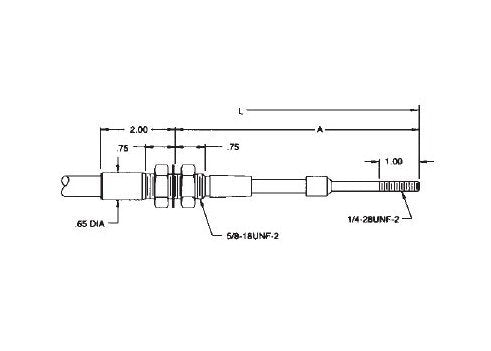

Specifications Swivel Dimension A Per Stroke
2 to 7.18 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 9.18 "
Specifications Type
Bristow®
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
