Cablecraft Unidrum Lever Control Specialty Cables

Cablecraft Unidrum Lever Control Specialty Cables

SKU:PUS-486792

Versatile Cablecraft Unidrum Lever Control Cables for precise and durable lever controls.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Cablecraft Unidrum Lever Control Specialty Cables

Cablecraft Unidrum Lever Control Specialty Cables

$129.99

Quantity: 1

Claim Your Seller Account

Cablecraft Unidrum Lever Control Specialty Cables

Cablecraft Unidrum Lever Control Specialty Cables

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Cablecraft Unidrum Lever Control Specialty Cables provide precise control and versatility for a range of applications. Featuring a red knob for easy identification, with CableCraft Unidrum Lever Upper Mount and right exit position, these cables offer light lever controls with an overall length of 120 inches. The grooved swivel output end configuration ensures smooth operation, while the light-duty wire rope and utility type design make them ideal for various uses. With a swivel dimension A per stroke ranging from 2 to 8.56 inches, these cables offer reliable performance and durability.

Product Specifications

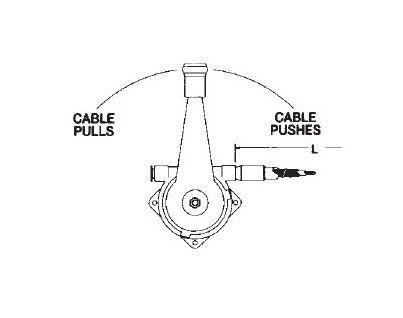

Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Right Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Red 165-505-102
Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "

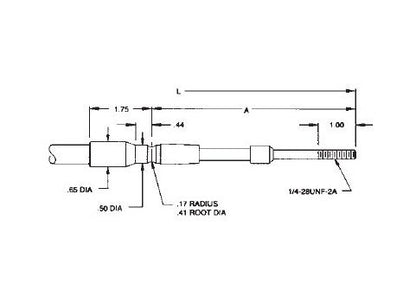

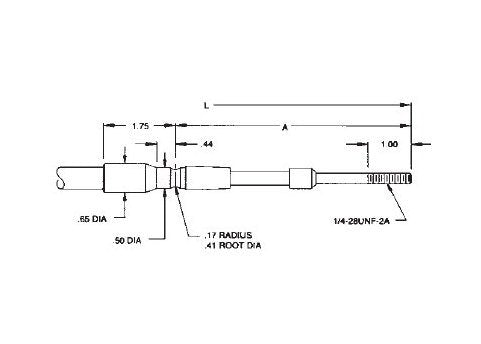

Specifications Swivel Dimension A Per Stroke
2 to 6.56 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.56 "
Specifications Type
Utility
Specifications Wire Rope Dia
Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
