Cablecraft Unidrum Lever Control Specialty Cables - Light Duty Bristow Type

Cablecraft Unidrum Lever Control Specialty Cables - Light Duty Bristow Type

SKU:PUS-7406d0

Premium Cablecraft Unidrum Lever Control Cables - Light Duty Bristow Type for precise and durable control in multiple applications.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Cablecraft Unidrum Lever Control Specialty Cables - Light Duty Bristow Type

Cablecraft Unidrum Lever Control Specialty Cables - Light Duty Bristow Type

$79.99

Quantity: 1

Claim Your Seller Account

Cablecraft Unidrum Lever Control Specialty Cables - Light Duty Bristow Type

Cablecraft Unidrum Lever Control Specialty Cables - Light Duty Bristow Type

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

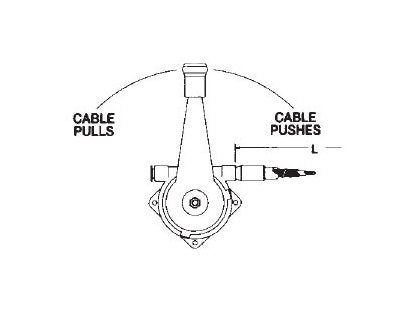

The Cablecraft Unidrum Lever Control Specialty Cables provide precise control and durability for various applications. With a black knob, upper mount cable exit position, grooved cap output end configuration, and swivel dimensions per stroke ranging from 2 to 6.56 inches, these cables offer a seamless lever travel of approximately 135 degrees. Designed for very light-duty wire rope, with an overall length of 120 inches, these cables ensure efficiency and reliability in lever controls.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Right Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Black 165-505-101
Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Grooved Cap
Specifications Overall Length In
120 "

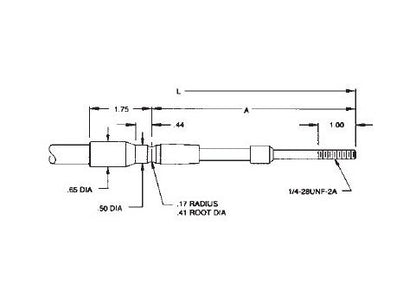

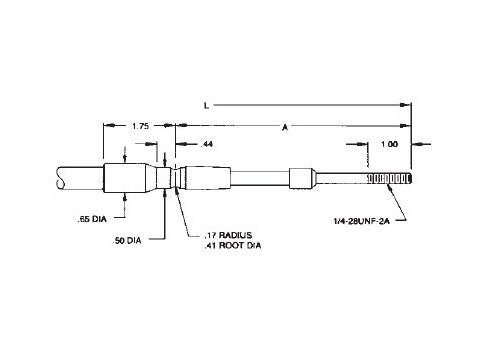

Specifications Swivel Dimension A Per Stroke
2 to 6.56 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.56 "
Specifications Type
Bristow®
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
