Cablecraft® Unidrum Lever Control Cables

Cablecraft® Unidrum Lever Control Cables

SKU:PUS-0b62be

Optimize control with Cablecraft® Unidrum Lever Cables for precise and reliable performance in light lever applications.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Cablecraft® Unidrum Lever Control Cables

Cablecraft® Unidrum Lever Control Cables

$129.99

Quantity: 1

Claim Your Seller Account

Cablecraft® Unidrum Lever Control Cables

Cablecraft® Unidrum Lever Control Cables

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

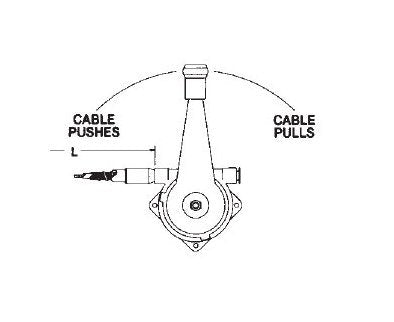

Enhance control in various light lever applications with Cablecraft® Unidrum Lever Control Specialty Cables. This versatile cable combines with optional lever configurations for precise control. The CableCraft Unidrum lever upper mount and left exit position ensure ease of use, while the grooved swivel output end configuration enhances performance. With very light-duty wire rope, utility type design, and an extended overall length of 120", this cable offers smooth operation with approximately 90º lever travel. Ideal for applications requiring swivel dimensions of 3 to 8.25" per stroke, making it a reliable choice for demanding control needs.

Product Specifications

Specifications Cable Exit Position
CableCraft Unidrum Lever Lower Mount, Right Exit
Specifications Cable Travel
3 "
Specifications Knob Color
Black 165-505-101
Specifications Lever Travel
Approx. 135º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "
Specifications Swivel Dimension A Per Stroke
2 to 6.25 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.25 "
Specifications Type
Utility
Specifications Wire Rope Dia
Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
