Cablecraft® Unidrum Lever Control Cables
Cablecraft® Unidrum Lever Control Cables
SKU:PUS-b6d0bb
Versatile Cablecraft® Unidrum Lever Control Cables for precise and smooth light lever controls.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Cablecraft® Unidrum Lever Control Cables
$129.99
Quantity: 1
Claim Your Seller Account
Cablecraft® Unidrum Lever Control Cables
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

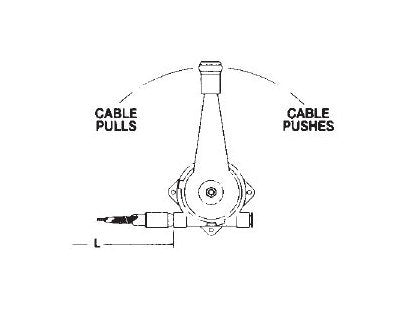

The Cablecraft® Unidrum Lever Control Specialty Cables provide versatile solutions for light lever controls. With optional lever/cable combinations, these cables offer a wide range of applications. The red knob for easy identification, CableCraft Unidrum Lever lower mount with left exit, grooved swivel output end configuration, and very light-duty wire rope dia make these cables ideal for utility purposes. Designed with precision, the cables have an overall length of 120 inches, 2" cable travel, and approximately 90º lever travel, ensuring smooth operation. The swivel dimension A per stroke ranges from 2 to 6.25" (or 3 to 8.25" when extended), providing flexibility and accuracy for various control needs.
Product Specifications
Specifications Cable Exit Position
CableCraft Unidrum Lever Lower Mount, Left Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Red 165-505-102
Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "
Specifications Swivel Dimension A Per Stroke
2 to 6.25 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.25 "
Specifications Type
Utility
Specifications Wire Rope Dia
Very Light Duty
