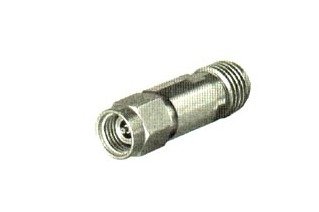

Calibration Straight Adaptors Plug to Jack (Male-Female) - PC 3.5 Series

Name: Calibration Straight Adaptors Plug to Jack (Male-Female) - PC 3.5 Series
Brand: C. W. Swift & Associates, Inc.
SKU: PC3-798337
Price: 49.99 USD
Availability: OutOfStock

SKU:PC3-798337

High-quality Calibration Straight Adaptors for PC 3.5 Series connectors, ensuring precision and durability.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Calibration Straight Adaptors Plug to Jack (Male-Female) are precision-engineered for PC 3.5 Series connectors, ensuring accurate calibration with impedance of 50 Ohms and frequency range up to 33 GHz. These adaptors feature high RF leakage protection, durable stainless steel construction, and beryllium-copper center contacts for reliable performance. With a temperature range from -85 to 194 degrees F, they offer exceptional versatility and longevity, making them ideal for institutional and government applications.

Product Specifications

Specifications Body

stainless steel

Specifications Body Material

stainless steel

Specifications Cable Entries

brass

Specifications Centre Contacts

beryllium-copper, hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight

Specifications Connection

male-male

Specifications Connector Series

PC 3.5

Specifications Contact Captivation Lbs

>6.1

Specifications Coupling Nut Retention Force Lbs

>60.7

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750/1000

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...33

Specifications Gaskets

silicone rubber

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>50000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Rf Leakage Db

>100

Specifications Support Beads

polystyrene, crosslinked

Specifications Temperature Range Degrees F

-85 to 194

Specifications Working Voltage Sea Level V Rms

<250/<335
