Cameron 214-B1 Micro Drill Press
Cameron 214-B1 Micro Drill Press
SKU:DRI-c1340f
Efficient, precise drilling with Cameron 214-B1 Micro Drill Press. Interchangeable spindle, constant speed control, and versatile performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Cameron 214-B1 Micro Drill Press
$349.99
Quantity: 1
Claim Your Seller Account
Cameron 214-B1 Micro Drill Press
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

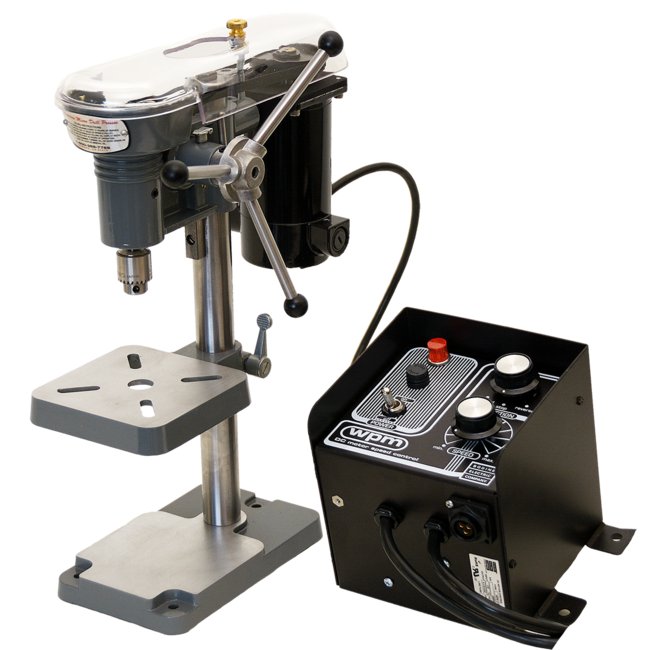

The Cameron 214-B1 Micro Drill Press is a versatile and durable tool designed for precision drilling and light milling tasks. Featuring a 1/7th HP heavy-duty DC motor, this drill press offers constant speed control ranging from 1000 to 30,000 RPM, ensuring efficient performance. The interchangeable spindle with linear sealed bearings allows for quick and easy spindle changes without the need for oiling, enhancing maintenance efficiency. With a spindle runout within 0.0002 inches, a clear plastic safety guard, and a slotted 4" x 4" work table, this drill press is both user-friendly and safe to operate. Ideal for drilling small holes ranging from 0.002 to 5/32 inches and capable of drilling to the center of a 5-inch workpiece, the Cameron 214-B1 Micro Drill Press is a reliable choice for professional workshops and manufacturing facilities.
Product Specifications
Features Features
1/7th HP heavy duty DC motorVariable speed control unit (5 amp / 115 VAC) maintains speeds from 1000-30,000 RPMInterchangeable spindle with linear sealed bearings for quick and easy spindle change. (No longer needs oiling)Smooth Rack and Pinion FeedDrills Small Holes (0.002" to 5/32")Can Drill to the Center of a 5" Work PieceSpindle Run Out at the Chuck Mounting Taper is within 0.0002"Clear Plastic Safety GuardSlotted 4" x 4" work table with 5/8" center holeJ0 Taper
Technical Specs Brands
Cameron
Technical Specs Center Column
2-1/2 in
Technical Specs Chuck Adjustable Table
5-3/4 in
Technical Specs Chuck Base
7 in
Technical Specs Depth
11 in
Technical Specs Drill Size
0 to 5/32 in
Technical Specs Height With Depth Indicator
17 in
Technical Specs Hole Size Varies With Chuck Size
0.002 to 5/32 in
Technical Specs Shipping Weight
9/12 lb
Technical Specs Spindle Feed Travel
1-1/4 in
Technical Specs Table Center Hole
5/8 in
Technical Specs Table Size With Clamping Slots
4 x 4 in
Technical Specs Width
5-1/4 in
Technical Specs Within Chuck Spindle Runout At Mounting Taper
.0002 in
